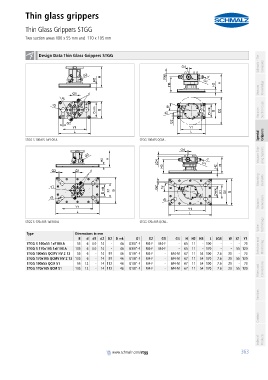

Thin glass grippers
Thin Glass Grippers STGG
PA01019111_inh_EN.pdf Two suction areas 100 x 55 mm and 170 x 105 mm PA01019111_inh_EN.pdf

container

container Design Data Thin Glass Grippers STGG Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers

STGG S 100x55 1xE100 A STGG 100x55 QCM...
Vacuum Grip- ping Systems
container

Mounting Elements

Vacuum Generators

STGG S 170x105 1xE100 A STGG 170x105 QCM... Technology
Valve
container
Type Dimensions in mm
B d d1 d2 D2 D mk G1 G2 G3 G4 H H2 H3 L LG4 W X1 Y1
STGG S 100x55 1xE100 A 55 6 4.0 14 - 46 G3/8"-F M4-F M4-F - 65 11 - 100 - - - 73 Switches and
STGG S 170x105 1xE100 A 105 6 4.0 14 - 46 G3/8"-F M4-F M4-F - 65 11 - 170 - - 55 120 Monitoring
STGG 100x55 QCMV HV 2 13 55 6 - 14 97 46 G1/8"-F M4-F - M4-M 67 11 54 100 7.6 20 - 73
STGG 170x105 QCMV HV 2 13 105 6 - 14 97 46 G1/8"-F M4-F - M4-M 67 11 54 170 7.6 20 55 120
STGG 100x55 QCM 51 55 12 - 14 112 46 G1/8"-F M4-F - M4-M 67 11 54 100 7.6 20 - 73
Filters and
STGG 170x105 QCM 51 105 12 - 14 112 46 G1/8"-F M4-F - M4-M 67 11 54 170 7.6 20 55 120 Connections

Services

Contact

Index of Products

container
www.schmalz.com/stgg
