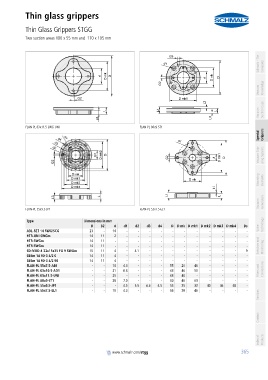

Thin glass grippers
Thin Glass Grippers STGG
PA01019111_inh_EN.pdf Two suction areas 100 x 55 mm and 170 x 105 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

FLAN-PL 63x11.5 SWG-UNI FLAN-PL 80x9-ST1
Special Grippers
container

Vacuum Grip- ping Systems

Mounting Elements

Vacuum Generators

FLAN-PL 55x9.5-JP1 FLAN-PL 55x7.5-EL1

container
Type Dimensions in mm
B B2 d d1 d2 d3 d4 D D mk D mk1 D mk2 D mk3 D mk4 Ds Valve Technology
ABL-SET 14 SWG/SCG 23 - 14 - - - - - - - - - - -
HTR-UNI SWGm 14 11 2 - - - - - - - - - - -
HTR SWGm 14 11 - - - - - - - - - - - -
HTR SWGm 14 11 - - - - - - - - - - - - Switches and Monitoring
SD-MOD 4 32x15x35 FG 9 SWGm 15 11 4 - 4.1 - - - - - - - - 9
SBSm 14 90-3 4/2 0 14 11 4 - - - - - - - - - - -
SBSm 14 90-3 4/2 90 14 11 4 - - - - - - - - - - -
FLAN-PL 55x7.5-AB1 - - 10 4.3 - - - 55 20 46 - - - -
FLAN-PL 63x10.5-AD1 - - 21 6.6 - - - 63 46 50 - - - - Filters and Connections
FLAN-PL 63x11.5-UNI - - 25 - - - - 63 46 - - - - -
FLAN-PL 80x9-ST1 - - 28 7.0 - - - 80 46 63 - - - -
FLAN-PL 55x9.5-JP1 - - - 4.5 5.5 6.6 4.5 55 25 32 40 46 48 -
FLAN-PL 55x7.5-EL1 - - 10 4.3 - - - 55 28 46 - - - -
Services

Contact

Index of Products

container
www.schmalz.com/stgg
