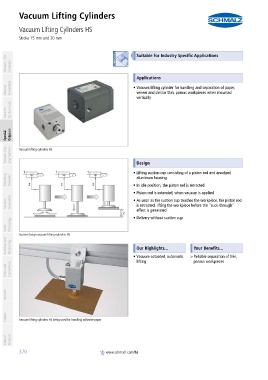

Page 370 - Schmalz - Vacuum Components

EN_Spezialgreifer.book Seite 370 Donnerstag, 25. Februar 2016 6:05 18
PA01019111_inh_EN.pdf
Vacuum Lifting Cylinders
Vacuum Lifting Cylinders HS
PA01019111_inh_EN.pdf Stroke 15 mm and 30 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Vacuum lifting cylinder for handling and separation of paper,
veneer and similar thin, porous workpieces when mounted
vertically

Vacuum Suction Cups

Special Grippers

Vacuum Grip- ping Systems Vacuum lifting cylinders HS Design

container

• Lifting suction cup consisting of a piston rod and anodized
Mounting Elements • In idle position, the piston rod is retracted
aluminum housing

• Piston rod is extended, when vacuum is applied
Vacuum Generators • As soon as the suction cup touches the workpiece, the piston rod
is retracted, lifting the workpiece before the "suck-through"
effect is generated
• Delivery without suction cup
Valve Technology

System design vacuum lifting cylinders HS
Switches and Monitoring container Our Highlights... Your Benefits...

• Vacuum-actuated, automatic >Reliable separation of thin,
porous workpieces
lifting
Filters and Connections

Services

Contact Vacuum lifting cylinders HS being used for handling adhesive paper

Index of Products

370 www.schmalz.com/hs
