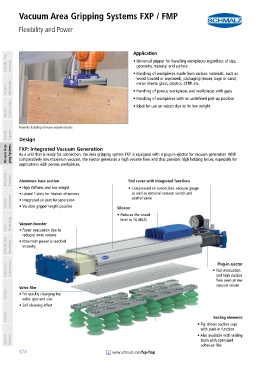

Vacuum Area Gripping Systems FXP / FMP
Flexibility and Power
PA01019111_inh_EN.pdf Application PA01019111_inh_EN.pdf

Schmalz - The Company • Universal gripper for handling workpieces regardless of size,
geometry, material and surface
• Handling of workpieces made from various materials, such as
wood (coated or unplaned), packaging (boxes, bags or cans),
metal sheets, glass, plastics, CFRP, etc.
Vacuum Knowledge • Handling of porous workpieces and workpieces with gaps

• Handling of workpieces with an undefined pick-up position

Vacuum Suction Cups • Ideal for use on robots due to its low weight

Powerful handling of heavy wooden beams
Special Grippers Design

Vacuum Grip- ping Systems FXP: Integrated Vacuum Generation

As a unit that is ready for connection, the area gripping system FXP is equipped with a plug-in ejector for vacuum generation. With
comparatively low maximum vacuum, the ejector generates a high volume flow and thus provides high holding forces, especially for
applications with porous workpieces.

Mounting Elements Aluminum base section End cover with integrated functions

• High stiffness and low weight • Compressed air connection, vacuum gauge
• Lateral T-slots for fixation of sensors as well as optional vacuum switch and
control valve
Vacuum Generators • Integrated air duct for separation Silencer
• Variable gripper length possible

• Reduces the sound
level to 74 dB(A)
Valve Technology Vacuum booster
• Faster evacuation due to
reduced inner volume
Switches and Monitoring • Maximum power is reached
instantly

Plug-in ejector
Filters and Connections • Fast evacuation
and high suction
flow even at low
vacuum values
Valve film
Services • For quickly changing the
valve type and size
• Self-cleaning effect

Contact Sealing elements

• Fig. shows suction cups
with push-in function
Index of Products • Also available with sealing
foam with optimized
adhesive film
