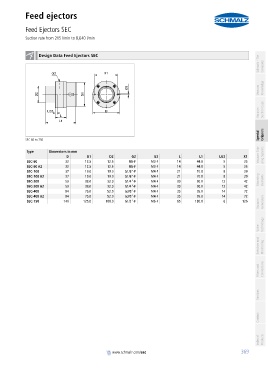

Feed ejectors
Feed Ejectors SEC
PA01019111_inh_EN.pdf Suction rate from 215 l/min to 8,640 l/min PA01019111_inh_EN.pdf

container

container Design Data Feed Ejectors SEC Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers

SEC 60 to 750

container
Type Dimensions in mm
D D1 D2 G2 G3 L L1 LG3 X1 Vacuum Grip- ping Systems
SEC-60 32 12.5 12.5 M5-F M3-F 14 44.0 5 25
SEC-60 A2 32 12.5 12.5 M5-F M3-F 14 44.0 5 25
SEC-100 37 19.0 19.0 G1/8"-F M4-F 21 70.0 8 29
SEC-100 A2 37 19.0 19.0 G1/8"-F M4-F 21 70.0 8 29
SEC-200 50 38.0 32.0 G1/4"-F M4-F 30 90.0 12 42 Mounting Elements
SEC-200 A2 50 38.0 32.0 G1/4"-F M4-F 30 90.0 12 42
SEC-400 84 75.0 52.0 G3/8"-F M4-F 35 95.0 14 72
SEC-400 A2 84 75.0 52.0 G3/8"-F M4-F 35 95.0 14 72
Vacuum
SEC-750 140 125.0 100.0 G1/2"-F M6-F 65 180.0 6 126 Generators
