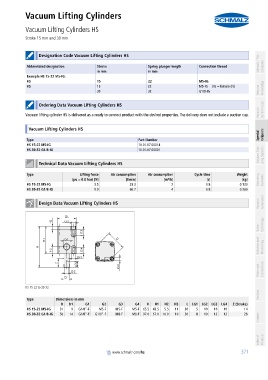

Vacuum Lifting Cylinders
Vacuum Lifting Cylinders HS
PA01019111_inh_EN.pdf Stroke 15 mm and 30 mm PA01019111_inh_EN.pdf

container

container Designation Code Vacuum Lifting Cylinders HS Schmalz - The
Abbreviated designation Stroke Spring plunger length Connection thread Company
in mm in mm
Example HS 15-22 M5-IG:
HS 15 22 M5-IG
HS 15 22 M5-IG (IG = female (F)) Knowledge
30 32 G1/8-IG Vacuum

container
Ordering Data Vacuum Lifting Cylinders HS
Vacuum Suction Cups
Vacuum lifting cylinder HS is delivered as a ready to connect product with the desired properties. The delivery does not include a suction cup.
container
container
Vacuum Lifting Cylinders HS
Special Grippers
container
Type Part Number
HS 15-22 M5-IG 10.01.07.00014
Vacuum Grip- ping Systems
HS 30-32 G1/8-IG 10.01.07.00001
container
Technical Data Vacuum Lifting Cylinders HS

container
Type Lifting force Air consumption Air consumption Cycle time Weight
(pu = 0.8 bar) [N] [l/min] [m³/h] [s] [kg] Mounting Elements
HS 15-22 M5-IG 3.5 33.3 2 0.8 0.130
HS 30-32 G1/8-IG 9.0 66.7 4 0.8 0.360

container
Design Data Vacuum Lifting Cylinders HS Vacuum Generators
container

Valve Technology

Switches and Monitoring

Filters and Connections

HS 15-22 to 30-32
Services
container
Type Dimensions in mm
D D1 G1 G2 G3 G4 H H1 H2 H3 L LG1 LG2 LG3 LG4 Z (Stroke)
HS 15-22 M5-IG 31 9 G1/8"-F M5-F M5-F M5-F 65.5 43.5 5.5 11 30 5 10 10 10 14
Contact
HS 30-32 G1/8-IG 50 14 G1/8"-F G1/8"-F M8-F M8-F 97.0 67.0 10.0 10 50 8 10 12 12 28

Index of Products

container
container 371
www.schmalz.com/hs
