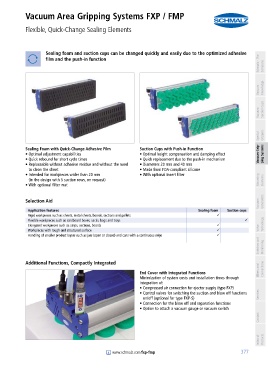

Vacuum Area Gripping Systems FXP / FMP
Flexible, Quick-Change Sealing Elements
PA01019111_inh_EN.pdf Sealing foam and suction cups can be changed quickly and easily due to the optimized adhesive PA01019111_inh_EN.pdf
Schmalz - The Company
film and the push-in function
Vacuum Knowledge
Vacuum Suction Cups
Special Grippers
Sealing Foam with Quick-Change Adhesive Film Suction Cups with Push-in Function
• Optimal adjustment capabilities • Optimal height compensation and damping effect Vacuum Grip- ping Systems
• Quick rebound for short cycle times • Quick replacement due to the push-in mechanism
• Replaceable without adhesive residue and without the need • Diameters 20 mm and 40 mm
to clean the sheet • Made from FDA-compliant silicone
• Intended for workpieces wider than 20 mm • With optional insert filter
(in the design with 5 suction rows, on request) Mounting Elements
• With optional filter mat
Vacuum
Selection Aid Generators
Application features Sealing foam Suction cups
Rigid workpieces such as sheets, metal sheets, boards, sections and pallets
Flexible workpieces such as cardboard boxes, sacks, bags and trays
Elongated workpieces such as strips, sections, boards Valve Technology
Workpieces with rough and structured surface
Handling of smaller product layers such as jars (open or closed) and cans with a continuous edge
Switches and Monitoring
Additional Functions, Compactly Integrated
Filters and Connections
End Cover with Integrated Functions
Minimization of system costs and installation times through
integration of:
• Compressed air connection for ejector supply (type FXP)
• Control valves for switching the suction and blow off functions Services
on/off (optional for type FXP-S)
• Connection for the blow off and separation functions
• Option to attach a vacuum gauge or vacuum switch
Contact
Index of Products
www.schmalz.com/fxp-fmp 377
