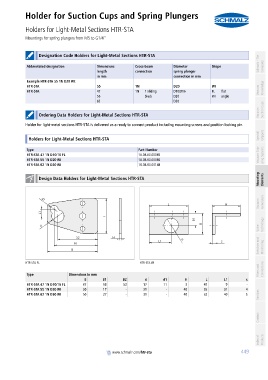

Holder for Suction Cups and Spring Plungers
Holders for Light-Metal Sections HTR-STA
PA01019111_inh_EN.pdf Mountings for spring plungers from M5 to G1/4" PA01019111_inh_EN.pdf

container

container Designation Code Holders for Light-Metal Sections HTR-STA Schmalz - The
Abbreviated designation Dimensions Cross-beam Diameter Shape Company
length connection spring plunger
in mm connection in mm
Example HTR-STA 55 1N D20 WI:
HTR-STA 55 1N D20 WI Knowledge
HTR-STA 47 1N 1 sliding D10/D16 FL flat Vacuum
55 block D20 WI angle
62 D30
Vacuum
container Suction Cups
Ordering Data Holders for Light-Metal Sections HTR-STA
Holder for light-metal sections HTR-STA is delivered as a ready to connect product including mounting screws and position locking pin.
container
Special
container Grippers
Holders for Light-Metal Sections HTR-STA
container
Type Part Number
HTR-STA 47 1N D10/16 FL 10.08.03.00085 Vacuum Grip- ping Systems
HTR-STA 55 1N D20 WI 10.08.03.00086
HTR-STA 62 1N D30 WI 10.08.03.00148
Mounting Elements
container
Design Data Holders for Light-Metal Sections HTR-STA
container

Vacuum Generators

Valve Technology

Switches and Monitoring

HTR-STA FL HTR-STA WI
Filters and Connections
container
Type Dimensions in mm
B B1 B2 d d1 H L L1 s
HTR-STA 47 1N D10/16 FL 67 58 53 17 11 3 47 9 -
HTR-STA 55 1N D20 WI 30 17 - 21 - 40 55 31 4
Services
HTR-STA 62 1N D30 WI 50 27 - 31 - 40 62 40 5

Contact

Index of Products

container
www.schmalz.com/htr-sta
