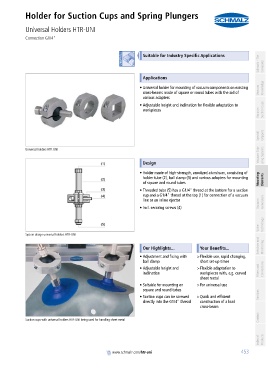

Holder for Suction Cups and Spring Plungers
Universal Holders HTR-UNI
PA01019111_inh_EN.pdf Connection G1/4" PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Universal holder for mounting of vacuum components on existing Vacuum Knowledge
cross-beams made of square or round tubes with the aid of
various adapters
• Adjustable height and inclination for flexible adaptation to
Vacuum
workpieces Suction Cups

Special Grippers

Vacuum Grip- ping Systems
Universal holders HTR-UNI
container
Design

• Holder made of high-strength, anodized aluminum, consisting of
holder tube (2), ball clamp (3) and various adapters for mounting Mounting Elements
of square and round tubes

• Threaded tube (5) has a G1/4" thread at the bottom for a suction
cup and a G1/4" thread at the top (1) for connection of a vacuum
line or an inline ejector Vacuum Generators

• Incl. securing screws (4)

Valve Technology

System design universal holders HTR-UNI
Switches and
container
Our Highlights... Your Benefits... Monitoring
• Adjustment and fixing with >Flexible use, rapid changing,
ball clamp short set-up times
• Adjustable height and >Flexible adaptation to Filters and Connections
inclination workpieces with, e.g. curved
sheet metal
• Suitable for mounting on >For universal use
square and round tubes
• Suction cups can be screwed >Quick and efficient Services
directly into the G1/4" thread construction of a load
cross-beam
Contact
Suction cups with universal holders HTR-UNI being used for handling sheet metal

Index of Products

container
www.schmalz.com/htr-uni
