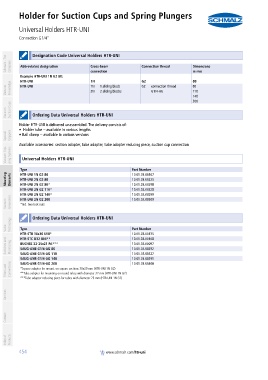

Holder for Suction Cups and Spring Plungers
Universal Holders HTR-UNI
PA01019111_inh_EN.pdf Connection G1/4" PA01019111_inh_EN.pdf

container
Designation Code Universal Holders HTR-UNI
Schmalz - The Company container Abbreviated designation Cross-beam Connection thread Dimensions

Example HTR-UNI 1N G2 80: connection G2 in mm
80
HTR-UNI
1N
Vacuum Knowledge HTR-UNI 1N 1 sliding block G2 connection thread 80
2 sliding blocks
2N
G1/4-AG
110
140
200
Vacuum Suction Cups container Ordering Data Universal Holders HTR-UNI
Holder HTR-UNI is delivered unassembled. The delivery consists of:
container
• Holder tube – available in various lengths
Special Grippers • Ball clamp – available in various versions

Available accessories: section adapter, tube adapter, tube adapter reducing piece, suction cup connection
Vacuum Grip- ping Systems container Universal Holders HTR-UNI

container
Type Part Number
Mounting Elements HTR-UNI 1N G2 80 10.01.03.00107
HTR-UNI 2N G2 80
10.01.03.00223
HTR-UNI 2N G2 80*
10.01.03.00328
HTR-UNI 2N G2 110* 10.01.03.00298
HTR-UNI 2N G2 140* 10.01.03.00299
Vacuum Generators HTR-UNI 2N G2 200 10.01.03.00309
*Incl. two lock nuts

container Ordering Data Universal Holders HTR-UNI
Valve Technology container Type Part Number

HTR-STB 30x30 UNI* 10.01.03.00135
Switches and Monitoring BUCHSE 32-25x21 PA*** 10.01.03.00097
HTR-STC D32 UNI**
10.01.03.00108
10.01.03.00292
SAUG-ANB G1/4-AG 80
SAUG-ANB G1/4-AG 110
10.01.03.00291
SAUG-ANB G1/4-AG 140 10.01.03.00327
SAUG-ANB G1/4-AG 200
10.01.03.00308
Filters and Connections *Square adapter for mount. on square sections 30x30 mm (HTR-UNI 1N G2)
**Tube adapter for mounting on round tubes with diameter 32 mm (HTR-UNI 1N G2)
***Tube adapter reducing piece for tubes with diameter 25 mm (HTR-UNI 1N G2)

Services

Contact

Index of Products

454 www.schmalz.com/htr-uni
