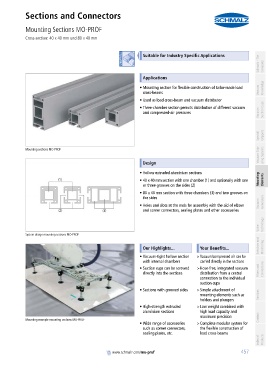

Page 457 - Schmalz - Vacuum Components

EN_Spezialgreifer.book Seite 457 Donnerstag, 25. Februar 2016 6:05 18
PA01019111_inh_EN.pdf
Sections and Connectors
Mounting Sections MO-PROF
PA01019111_inh_EN.pdf Cross-section: 40 x 40 mm und 80 x 40 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Mounting section for flexible construction of tailor-made load Vacuum Knowledge
cross-beams
• Used as load cross-beam and vacuum distributor
• Three-chamber section permits distribution of different vacuum Suction Cups
and compressed-air pressures Vacuum

Special Grippers

Vacuum Grip- ping Systems
Mounting sections MO-PROF
container
Design

• Hollow extruded aluminium sections
• 40 x 40 mm section with one chamber (1) and optionally with one Mounting Elements
or three grooves on the sides (2)
• 80 x 40 mm section with three chambers (3) and two grooves on
the sides
• Holes and slots at the ends for assembly with the aid of elbow Vacuum Generators
and corner connectors, sealing plates and other accessories

Valve Technology

System design mounting sections MO-PROF
Switches and
container
Our Highlights... Your Benefits... Monitoring
• Vacuum-tight hollow section > Vacuum/compressed air can be
with internal chambers carried directly in the sections
• Suction cups can be screwed >Hose-free, integrated vacuum Filters and Connections
directly into the sections distribution from a central
connection to the individual
suction cups
• Sections with grooved sides >Simple attachment of
mounting elements such as Services
holders and plungers
• High-strength extruded >Low weight combined with
aluminium sections high load capacity and
maximum precision Contact
Mounting example mounting sections MO-PROF
• Wide range of accessories >Complete modular system for
such as corner connectors, the flexible construction of
sealing plates, etc. load cross-beams
Index of Products

container
container 457
www.schmalz.com/mo-prof
