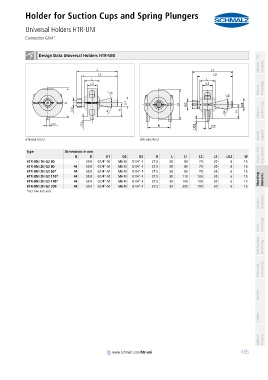

Holder for Suction Cups and Spring Plungers
Universal Holders HTR-UNI
PA01019111_inh_EN.pdf Connection G1/4" PA01019111_inh_EN.pdf

container

container Design Data Universal Holders HTR-UNI Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
HTR-UNI 1N G2 HTR-UNI 2N G2

container
Type Dimensions in mm
B D G1 G2 G3 H L L1 L2 L3 LG2 W Vacuum Grip- ping Systems
HTR-UNI 1N G2 80 - 59.0 G1/4"-M M6-M G1/4"-F 27.5 30 80 70 20 6 15
HTR-UNI 2N G2 80 44 59.0 G1/4"-M M6-M G1/4"-F 27.5 30 80 70 20 6 15
HTR-UNI 2N G2 80* 44 59.0 G1/4"-M M6-M G1/4"-F 27.5 30 80 70 20 6 15
HTR-UNI 2N G2 110* 44 59.0 G1/4"-M M6-M G1/4"-F 27.5 30 110 100 20 6 15
HTR-UNI 2N G2 140* 44 59.0 G1/4"-M M6-M G1/4"-F 27.5 30 140 130 20 6 15 Mounting Elements
HTR-UNI 2N G2 200 44 59.0 G1/4"-M M6-M G1/4"-F 27.5 30 200 190 20 6 15
*Incl. two lock nuts
