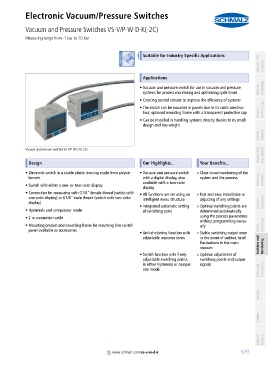

Electronic Vacuum/Pressure Switches
Vacuum and Pressure Switches VS-V/P-W-D-K(-2C)
PA01019111_inh_EN.pdf Measuring range from -1 bar to 10 bar PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Vacuum and pressure switch for use in vacuum and pressure Vacuum Knowledge
systems for process monitoring and optimizing cycle times
• Creating control circuits to improve the efficiency of systems
• The switch can be mounted in panels due to its cubic construc- Suction Cups
tion; optional mounting frame with a transparent protective cap Vacuum
• Can be installed in handling systems directly thanks to its small
design and low weight
Special Grippers

Vacuum Grip- ping Systems
Vacuum and pressure switches VS-V/P-W-D-K(-2C)
container
Design Our Highlights... Your Benefits...

• Electronic switch in a stable plastic housing made from polycar- • Vacuum and pressure switch >Clear visual monitoring of the
bonate with a digital display, also system and the process Mounting
available with a two-color Elements
• Switch with either a one- or two-color display
display
• Connection for measuring with G1/8" female thread (switch with • All functions are set using an >Fast and easy installation or
one-color display) or G1/8" male thread (switch with two-color intelligent menu structure adjusting of any settings
display) Vacuum Generators
• Integrated automatic setting >Optimal switching points are
• Hysteresis and comparator mode of switching point determined automatically
using the process parameters
• 2 m connection cable
without programming manu-
• Mounting bracket and mounting frame for mounting into switch ally Valve Technology
panel available as accessories
• Anti-chattering function with >Stable switching output even
adjustable response times in the event of sudden, brief
fluctuations in the main Switches and
vacuum Monitoring
• Switch function with freely- >Optimal adjustment of
adjustable switching points, switching points and output
in either hysteresis or compar- signals
Filters and
ator mode Connections

Services

Contact

Index of Products

container
www.schmalz.com/vs-v-w-d-k
