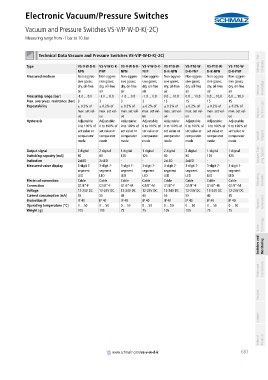

Electronic Vacuum/Pressure Switches
Vacuum and Pressure Switches VS-V/P-W-D-K(-2C)
PA01019111_inh_EN.pdf Measuring range from -1 bar to 10 bar PA01019111_inh_EN.pdf

container

container Technical Data Vacuum and Pressure Switches VS-V/P-W-D-K(-2C) Schmalz - The
Type VS-V-W-D-K- VS-V-W-D-K- VS-V-W-D-K- VS-V-W-D-K- VS-P10-W- VS-P10-W- VS-P10-W- VS-P10-W- Company
NPN PNP NPN PNP D-K-NPN D-K-PNP D-K-NPN D-K-PNP
Measured medium Non-aggres- Non-aggres- Non-aggres- Non-aggres- Non-aggres- Non-aggres- Non-aggres- Non-aggres-
sive gases; sive gases; sive gases; sive gases; sive gases; sive gases; sive gases; sive gases;
dry, oil-free dry, oil-free dry, oil-free dry, oil-free dry, oil-free dry, oil-free dry, oil-free dry, oil-free Knowledge
air air air air air air air air Vacuum
Measuring range [bar] -1.0 ... 0.0 -1.0 ... 0.0 -1.0 ... 0.0 -1.0 ... 0.0 0.0 ... 10.0 0.0 ... 10.0 0.0 ... 10.0 0.0 ... 10.0
Max. overpress. resistance [bar] 3 3 3 3 15 15 15 15
Repeatability ± 0.2% of ± 0.2% of ± 0.2% of ± 0.2% of ± 0.2% of ± 0.2% of ± 0.2% of ± 0.2% of
max. set val- max. set val- max. set val- max. set val- max. set val- max. set val- max. set val- max. set val- Vacuum Suction Cups
ue ue ue ue ue ue ue ue
Hysteresis Adjustable: Adjustable: Adjustable: Adjustable: Adjustable: Adjustable: Adjustable: Adjustable:
0 to 100% of 0 to 100% of 0 to 100% of 0 to 100% of 0 to 100% of 0 to 100% of 0 to 100% of 0 to 100% of
set value or set value or set value or set value or set value or set value or set value or set value or
comparator comparator comparator comparator comparator comparator comparator comparator Special Grippers
mode mode mode mode mode mode mode mode

Output signal 2 digital 2 digital 1 digital 1 digital 2 digital 2 digital 1 digital 1 digital
Switching capacity [mA] 80 80 125 125 80 80 125 125 Vacuum Grip- ping Systems
Indication 2xLED 2xLED - - 2xLED 2xLED - -
Measured-value display 3-digit 7- 3-digit 7- 3-digit 7- 3-digit 7- 3-digit 7- 3-digit 7- 3-digit 7- 3-digit 7-
segment segment segment segment segment segment segment segment
LED LED LED LED LED LED LED LED
Electrical connection Cable Cable Cable Cable Cable Cable Cable Cable Mounting Elements
Connection G1/8"-F G1/8"-F G1/8"-M G1/8"-M G1/8"-F G1/8"-F G1/8"-M G1/8"-M
Voltage 12-24V DC 12-24V DC 12-24V DC 12-24V DC 12-24V DC 12-24V DC 12-24V DC 12-24V DC
Current consumption [mA] 55 55 45 45 55 55 45 45
Protection IP IP 40 IP 40 IP 40 IP 40 IP 40 IP 40 IP 40 IP 40 Generators
Operating temperature [°C] 0 ... 50 0 ... 50 0 ... 50 0 ... 50 0 ... 50 0 ... 50 0 ... 50 0 ... 50 Vacuum
Weight [g] 105 105 75 75 105 105 75 75
