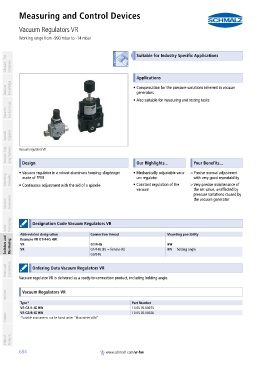

Page 684 - Schmalz - Vacuum Components

pct_160_n2305668.fm Seite 684 Donnerstag, 25. Februar 2016 6:33 18
PA01019111_inh_EN.pdf
Measuring and Control Devices
Vacuum Regulators VR
PA01019111_inh_EN.pdf Working range from -990 mbar to -14 mbar PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Compensation for the pressure variations inherent in vacuum
generators
• Also suitable for measuring and testing tasks
Vacuum Suction Cups

Special Grippers

Vacuum Grip- ping Systems Vacuum regulators VR Our Highlights... Your Benefits...

container
Design

• Vacuum regulator in a robust aluminum housing; diaphragm • Mechanically adjustable vacu- >Precise manual adjustment
Mounting Elements made of FPM • Constant regulation of the >Very precise maintenance of
um regulator
with very good repeatability
• Continuous adjustment with the aid of a spindle
vacuum the set value, unaffected by
pressure variations caused by
Vacuum Generators the vacuum generator

Valve Technology container Designation Code Vacuum Regulators VR

container
Abbreviated designation Connection thread Mounting possibility
Switches and Monitoring VR G1/4-IG HW holding angle
Example VR G1/4-IG HW:
VR
G1/4-IG (IG = female (F))
HW
G3/8-IG
Filters and Connections container Ordering Data Vacuum Regulators VR

Vacuum regulator VR is delivered as a ready-to-connection product, including holding angle.
container
container
Services Vacuum Regulators VR

container
Type* Part Number
VR G1/4-IG HW 10.05.05.00075
Contact VR G3/8-IG HW 10.05.05.00026
*Suitable manometers can be found under "Manometer VAM"

Index of Products

684 www.schmalz.com/vr-hw
