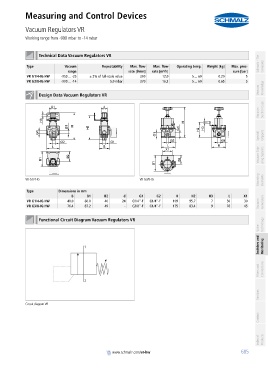

Measuring and Control Devices
Vacuum Regulators VR
PA01019111_inh_EN.pdf Working range from -990 mbar to -14 mbar PA01019111_inh_EN.pdf

container

container Technical Data Vacuum Regulators VR Schmalz - The
Type Vacuum Repeatability Max. flow Max. flow Operating temp. Weight [kg] Max. pres- Company
range rate [l/min] rate [m³/h] sure [bar]
VR G1/4-IG HW -950 ... -25 ± 2% of full-scale value 200 12.0 5 ... 60 0.20 5
VR G3/8-IG HW -990 ... -14 5.0 mbar 270 16.2 5 ... 60 0.65 5
Vacuum Knowledge
container
Design Data Vacuum Regulators VR
container
Vacuum Suction Cups

Special Grippers

Vacuum Grip- ping Systems

Mounting Elements
VR G1/4-IG VR G3/8-IG

container
Type Dimensions in mm
B B1 B2 d G1 G2 H H2 H3 L X1
VR G1/4-IG HW 40.0 60.0 40 24 G1/4"-F G1/4"-F 109 95.7 7 50 30 Vacuum Generators
VR G3/8-IG HW 76.4 87.2 49 - G3/8"-F G1/4"-F 175 83.4 9 76 45

container
Functional Circuit Diagram Vacuum Regulators VR
Valve Technology
container
Switches and Monitoring

Filters and Connections

Services

Circuit diagram VR

Contact

Index of Products

container
container 685
www.schmalz.com/vr-hw
