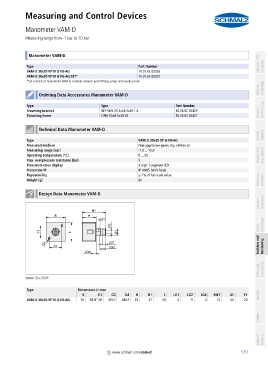

Measuring and Control Devices
Manometer VAM-D
PA01019111_inh_EN.pdf Measuring range from -1 bar to 10 bar PA01019111_inh_EN.pdf

container

container Manometer VAM-D Schmalz - The
Type Part Number Company
VAM-D 30x30 VP10 G1/8-AG 10.07.02.00055
VAM-D 30x30 VP10 G1/8-AG SET* 10.07.02.00057
*Set consists of manometer VAM-D, suitable screw in push fittings, plugs and needle probe
Vacuum Knowledge
container
Ordering Data Accessories Manometer VAM-D
container
Type Type Part Number
Mounting bracket BEF-WIN 20.3x45.5x40 1.6 10.06.02.00425 Vacuum Suction Cups
Mounting frame EINB-RAx8.5x30 VS 10.06.02.00427

container
Technical Data Manometer VAM-D
Special Grippers
container
Type VAM-D 30x30 VP G1/8-AG
Measured medium Non-aggressive gases; dry, oil-free air
Measuring range [bar] -1.0 ... 10.0
Operating temperature [°C] 0 ... 50 Vacuum Grip- ping Systems
Max. overpressure resistance [bar] 3
Measured-value display 3-digit 7-segment LED
Protection IP IP 40/65 (with hose)
Mounting
Repeatability ± 1% of full-scale value
Weight [g] 40 Elements

container
Design Data Manometer VAM-D
Vacuum
container Generators

Valve Technology

Switches and Monitoring

Filters and Connections

VAM-D 30 x 30 VP

container
Type Dimensions in mm
B G1 G2 G4 H H1 L LG1 LG2 LG4 SW1 X1 Y1 Services
VAM-D 30x30 VP10 G1/8-AG 30 G1/8"-M M5-F M3-F 22 37 30 6 9 4 12 20 20
