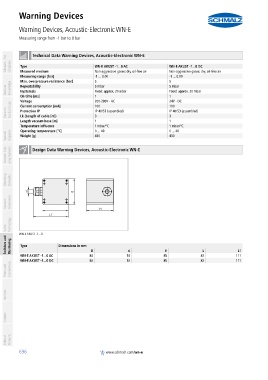

Page 696 - Schmalz - Vacuum Components

EN_Ventile.book Seite 696 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Warning Devices
Warning Devices, Acoustic-Electronic WN-E
PA01019111_inh_EN.pdf Measuring range from -1 bar to 0 bar PA01019111_inh_EN.pdf

container
Schmalz - The Company container Type Technical Data Warning Devices, Acoustic-Electronic WN-E WN-E AKUST -1...0 DC
WN-E AKUST -1...0 AC
Measured medium
-1 ... 0.00
-1 ... 0.00
Measuring range [bar] Non-aggressive gases; dry, oil-free air Non-aggressive gases; dry, oil-free air
5
5
Max. overpressure resistance [bar]
Vacuum Knowledge Repeatability 5 mbar 5 mbar
Fixed: approx. 20 mbar
Hysteresis
Fixed: approx. 20 mbar
On time [ms] 1 1
Voltage 200-280V - AC 24V - DC
Current consumption [mA]
100
100
Vacuum Suction Cups Protection IP IP 40/53 (assembled) IP 40/53 (assembled)
3
3
Lk (Length of cable [m])
Length vacuum hose [m] 1 1
Temperature influence 1 mbar/°C 1 mbar/°C
Special Grippers Operating temperature [°C] 0 ... 40 0 ... 40
430
Weight [g]
430
container Design Data Warning Devices, Acoustic-Electronic WN-E
Vacuum Grip- ping Systems container
Mounting Elements

Vacuum Generators

Valve Technology

WN-E AKUST -1...0
Switches and Monitoring container Type Dimensions in mm

L1
H
WN-E AKUST -1...0 AC 80 B 10 d 85 82 L 111
WN-E AKUST -1...0 DC 80 10 85 82 111
Filters and Connections

Services

Contact

Index of Products

696 www.schmalz.com/wn-e
