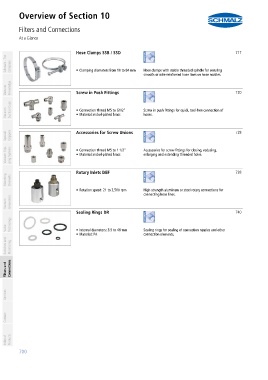

Overview of Section 10
Filters and Connections
PA01019111_inh_EN.pdf At a Glance Hose Clamps SSB / SSD 717 PA01019111_inh_EN.pdf

Schmalz - The Company

Hose clamps with stable threaded spindle for securing
• Clamping diameters from 10 to 84 mm
smooth or wire-reinforced hose lines on hose nozzles.
Vacuum Knowledge Screw in Push Fittings 720

Vacuum Suction Cups • Connection thread M5 to G1/2" Screw in push fittings for quick, tool-free connection of
• Material: nickel-plated brass
hoses.

Special Grippers Accessories for Screw Unions 728

Vacuum Grip- ping Systems • Connection thread M5 to 1 1/2" Accessories for screw fittings for closing, reducing,
• Material: nickel-plated brass
enlarging and extending threaded holes.

Rotary Inlets DEF 738
Mounting Elements

• Rotation speed: 21 to 3,500 rpm High-strength aluminum or steel rotary connections for
connecting hose lines.
Vacuum Generators

Sealing Rings DR 740

Valve Technology • Internal diameters: 3.5 to 48 mm Sealing rings for sealing of connection nipples and other

• Material: PA connection elements.
Switches and Monitoring

Filters and Connections

Services

Contact

Index of Products

700
