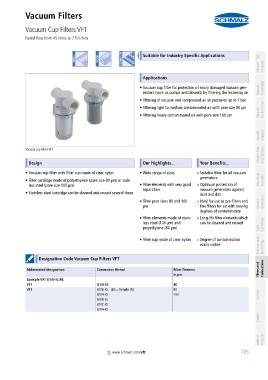

Vacuum Filters
Vacuum Cup Filters VFT
PA01019111_inh_EN.pdf Rated flow from 45 l/min to 770 l/min PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Vacuum cup filter for protection of easily damaged vacuum gen- Vacuum Knowledge
erators (such as pumps and blowers) by filtering the incoming air
• Filtering of vacuum and compressed air at pressures up to 7 bar
• Filtering light to medium contaminated air with pore size 80 µm Suction Cups
• Filtering heavy contaminated air with pore size 100 µm Vacuum

Special Grippers

Vacuum Grip- ping Systems
Vacuum cup filters VFT
container
Design Our Highlights... Your Benefits...

• Vacuum cup filter with filter cup made of clear nylon • Wide range of sizes >Suitable filter for all vacuum
generators
• Filter cartridge made of polyethylene (pore size 80 µm) or stain- Mounting Elements
less steel (pore size 100 µm) • Filter elements with very good >Optimum protection of
separation vacuum generators against
• Stainless steel cartridge can be cleaned and reused several times dust and dirt

• Filter pore sizes 80 and 100 >Ideal for use as pre-filters and Vacuum Generators
µm fine filters for air with varying
degrees of contamination
• Filter elements made of stain- >Long-life filter elements which
less steel (100 µm) and can be cleaned and reused Technology
polyethylene (80 µm) Valve

Switches and Monitoring
• Filter cup made of clear nylon >Degree of contamination
easily visible

container
Designation Code Vacuum Cup Filters VFT
Filters and
container Connections
Abbreviated designation Connection thread Filter fineness
in µm
Example VFT G1/8-IG 80:
VFT G1/8-IG 80
VFT G1/8-IG (IG = female (F)) 80
G1/4-IG 100 Services
G3/8-IG
G1/2-IG
G3/4-IG
Contact

Index of Products

container
www.schmalz.com/vft
