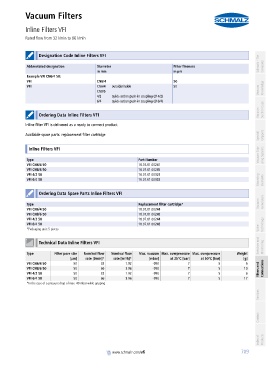

Vacuum Filters
Inline Filters VFI
PA01019111_inh_EN.pdf Rated flow from 32 l/min to 66 l/min PA01019111_inh_EN.pdf

container

container Designation Code Inline Filters VFI Schmalz - The
Abbreviated designation Diameter Filter fineness Company
in mm in µm
Example VFI CN6/4 50:
VFI CN6/4 50
VFI CN6/4 outside/inside 50 Knowledge
CN8/6 Vacuum
4/2 quick-action push-in coupling (Ø 4/2)
6/4 quick-action push-in coupling (Ø 6/4)
Vacuum
container Suction Cups
Ordering Data Inline Filters VFI
Inline filter VFI is delivered as a ready to connect product.
container

Special
Available spare parts: replacement filter cartridge Grippers
container
Vacuum Grip- ping Systems
Inline Filters VFI
container
Type Part Number
VFI CN6/4 50 10.07.01.00241
VFI CN8/6 50 10.07.01.00245
VFI 4/2 50 10.07.01.00329
VFI 6/4 50 10.07.01.00328 Mounting Elements

container
Ordering Data Spare Parts Inline Filters VFI
container Generators
Type Replacement filter cartridge* Vacuum
VFI CN6/4 50 10.07.01.00244
VFI CN8/6 50 10.07.01.00248
VFI 4/2 50 10.07.01.00244
VFI 6/4 50 10.07.01.00248 Technology
*Packaging unit: 5 pieces Valve
container
Technical Data Inline Filters VFI Switches and

container Monitoring
Type Filter pore size Nominal flow Nominal flow Max. vacuum Max. overpressure Max. overpressure Weight
[µm] rate [l/min]* rate [m³/h]* [mbar] at 25°C [bar] at 50°C [bar] [g]
VFI CN6/4 50 50 32 1.92 -990 7 5 6
VFI CN8/6 50 50 66 3.96 -990 7 5 10 Filters and Connections
VFI 4/2 50 50 32 1.92 -990 7 5 6
VFI 6/4 50 50 66 3.96 -990 7 5 17
*In the case of a pressure drop of max. 40 mbar while gripping

Services

Contact

Index of Products

container
container 709
www.schmalz.com/vfi
