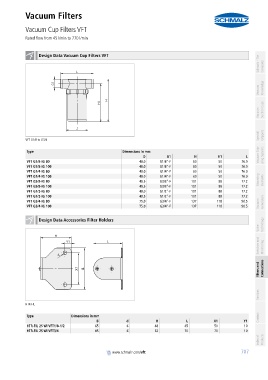

Page 707 - Schmalz - Vacuum Components

EN_Ventile.book Seite 707 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Vacuum Filters
Vacuum Cup Filters VFT
PA01019111_inh_EN.pdf Rated flow from 45 l/min to 770 l/min PA01019111_inh_EN.pdf

container

container Design Data Vacuum Cup Filters VFT Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
VFT G1/8 to G3/4

container
Type Dimensions in mm
D G1 H H1 L Vacuum Grip- ping Systems
VFT G1/8-IG 80 48.0 G1/8"-F 60 50 76.0
VFT G1/8-IG 100 48.0 G1/8"-F 60 50 76.0
VFT G1/4-IG 80 48.0 G1/4"-F 60 50 76.0
VFT G1/4-IG 100 48.0 G1/4"-F 60 50 76.0
VFT G3/8-IG 80 48.5 G3/8"-F 101 88 77.2 Mounting Elements
VFT G3/8-IG 100 48.5 G3/8"-F 101 88 77.2
VFT G1/2-IG 80 48.0 G1/2"-F 101 88 77.2
VFT G1/2-IG 100 48.5 G1/2"-F 101 88 77.2
VFT G3/4-IG 80 75.0 G3/4"-F 137 118 90.5 Vacuum Generators
VFT G3/4-IG 100 75.0 G3/4"-F 137 118 90.5

container
Design Data Accessories Filter Holders
Valve Technology
container
Switches and Monitoring

Filters and Connections

Services

HTR-FIL

container
Type Dimensions in mm Contact
B d H L X1 Y1
HTR-FIL 2S WI VFT1/8-1/2 65 6 48 45 50 10
HTR-FIL 2S WI VFT3/4 85 6 52 70 70 10
Index of Products

container
container 707
www.schmalz.com/vft
