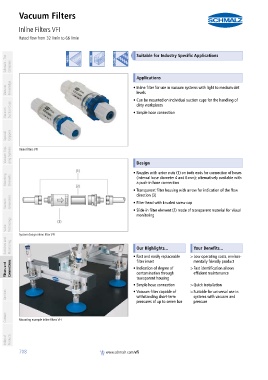

Vacuum Filters
Inline Filters VFI
PA01019111_inh_EN.pdf Rated flow from 32 l/min to 66 l/min PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Inline filter for use in vacuum systems with light to medium dirt
levels
• Can be mounted on individual suction cups for the handling of
dirty workpieces
Vacuum Suction Cups • Simple hose connection

Special Grippers

Vacuum Grip- ping Systems Inline filters VFI Design

container

• Nozzles with union nuts (1) on both ends for connection of hoses
Mounting Elements (internal hose diameter 4 and 6 mm); alternatively available with
a push-in hose connection

• Transparent filter housing with arrow for indication of the flow
direction (3)
Vacuum Generators • Filter head with knurled screw cap

• Slide-in filter element (2) made of transparent material for visual
monitoring
Valve Technology

System design inline filter VFI
Switches and Monitoring container Our Highlights... Your Benefits...

• Fast and easily replaceable >Low operating costs, environ-
filter insert
mentally friendly product
Filters and Connections • Indication of degree of >Fast identification allows
contamination through
efficient maintenance
transparent housing
• Simple hose connection >Quick installation
Services • Vacuum filter capable of >Suitable for universal use in
withstanding short-term
systems with vacuum and
pressures of up to seven bar pressure

Contact Mounting example inline filters VFI

Index of Products

708 www.schmalz.com/vfi
