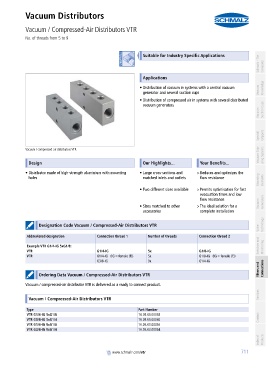

Page 711 - Schmalz - Vacuum Components

EN_Ventile.book Seite 711 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Vacuum Distributors
Vacuum / Compressed-Air Distributors VTR
PA01019111_inh_EN.pdf No. of threads from 5 to 9 PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Distribution of vacuum in systems with a central vacuum Vacuum Knowledge
generator and several suction cups
• Distribution of compressed air in systems with several distributed
vacuum generators
Vacuum Suction Cups

Special Grippers

Vacuum Grip- ping Systems
Vacuum / compressed-air distributors VTR
container
Design Our Highlights... Your Benefits...

• Distributor made of high-strength aluminium with mounting • Large cross-sections and >Reduces and optimizes the
Mounting Elements
holes matched inlets and outlets flow resistance
• Two different sizes available >Permits optimisation for fast
evacuation times and low
flow resistance Generators
• Sizes matched to other >The ideal solution for a Vacuum
accessories complete installation

container
Designation Code Vacuum / Compressed-Air Distributors VTR Technology
Valve
container
Abbreviated designation Connection thread 1 Number of threads Connection thread 2
Switches and
Example VTR G1/4-IG 5xG1/8: Monitoring
VTR G1/4-IG 5x G1/8-IG
VTR G1/4-IG (IG = female (F)) 5x G1/8-IG (IG = female (F))
G3/8-IG 9x G1/4-IG
Filters and Connections
container
Ordering Data Vacuum / Compressed-Air Distributors VTR

Vacuum / compressed-air distributor VTR is delivered as a ready to connect product.
container
Services
container
Vacuum / Compressed-Air Distributors VTR

container
Type Part Number
VTR G1/4-IG 5xG1/8 10.09.03.00058
VTR G3/8-IG 5xG1/4 10.09.03.00060 Contact
VTR G1/4-IG 9xG1/8 10.09.03.00056
VTR G3/8-IG 9xG1/4 10.09.03.00054
Index of Products

container
container 711
www.schmalz.com/vtr
