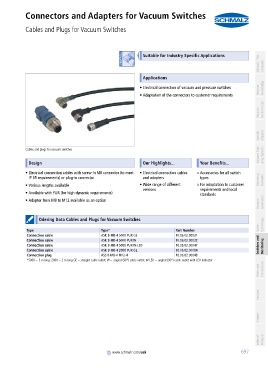

Connectors and Adapters for Vacuum Switches
Cables and Plugs for Vacuum Switches
PA01019111_inh_EN.pdf container PA01019111_inh_EN.pdf

Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Electrical connection of vacuum and pressure switches Vacuum Knowledge
• Adaptation of the connectors to customer requirements

Vacuum Suction Cups

Special Grippers

Vacuum Grip- ping Systems
Cables and plugs for vacuum switches
container
Design Our Highlights... Your Benefits...

• Electrical connection cables with screw-in M8 connector (to meet • Electrical connection cables >Accessories for all switch
IP 65 requirements) or plug-in connector and adapters types Mounting Elements
• Various lengths available • Wide range of different >For adaptation to customer
versions requirements and local
• Available with PUR (for high dynamic requirements) standards
Vacuum Generators
• Adapter from M8 to M12 available as an option

container
Odering Data Cables and Plugs for Vacuum Switches

container Valve Technology
Type Type* Part Number
Connection cable ASK B-M8-4 5000 PUR GE 10.06.02.00031
Connection cable ASK B-M8-4 5000 PUR W 10.06.02.00032
Connection cable ASK B-M8-4 5000 PUR W-LED 10.06.02.00047 Switches and Monitoring
Connection cable ASK B-M8-4 2000 PUR GE 10.06.02.00084
Connection plug ASS B-M8-4 M12-4 10.06.02.00048
*5000 = 5 m long; 2000 = 2 m long GE = straight cable outlet; W = angled (90°) cable outlet; W-LED = angled (90°) cable outlet with LED indicator
