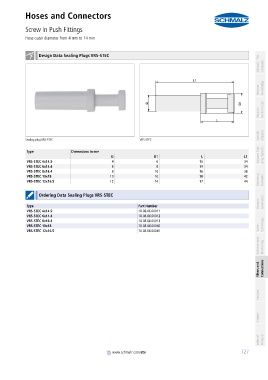

Page 727 - Schmalz - Vacuum Components

EN_Ventile.book Seite 727 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Hoses and Connectors
Screw in Push Fittings
PA01019111_inh_EN.pdf Hose outer diameter from 4 mm to 14 mm PA01019111_inh_EN.pdf

container

container Design Data Sealing Plugs VRS-STEC Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
Sealing plug VRS-STEC VRS-STEC

container
Type Dimensions in mm
D D1 L L1 Vacuum Grip- ping Systems
VRS-STEC 4x14.9 4 6 15 34
VRS-STEC 6x14.4 6 8 14 34
VRS-STEC 8x16.4 8 10 16 38
Mounting
VRS-STEC 10x18 10 10 18 42
VRS-STEC 12x16.5 12 14 17 44 Elements
container
Ordering Data Sealing Plugs VRS-STEC
Vacuum Generators
container
Type Part Number
VRS-STEC 4x14.9 10.08.06.00011
VRS-STEC 6x14.4 10.08.06.00012
VRS-STEC 8x16.4 10.08.06.00013
VRS-STEC 10x18 10.08.06.00060 Valve Technology
VRS-STEC 12x16.5 10.08.06.00041
