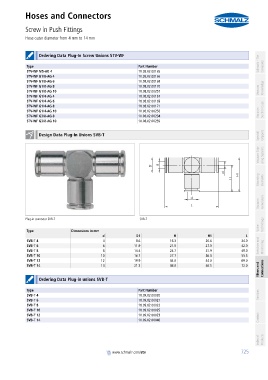

Page 725 - Schmalz - Vacuum Components

EN_Ventile.book Seite 725 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Hoses and Connectors
Screw in Push Fittings
PA01019111_inh_EN.pdf Hose outer diameter from 4 mm to 14 mm PA01019111_inh_EN.pdf

container

container Ordering Data Plug-In Screw Unions STV-WF Schmalz - The
Type Part Number Company
STV-WF M5-AG 4 10.08.02.00165
STV-WF G1/8-AG 4 10.08.02.00166
STV-WF G1/8-AG 6 10.08.02.00168
STV-WF G1/8-AG 8 10.08.02.00170 Knowledge
STV-WF G1/8-AG 10 10.08.02.00257 Vacuum
STV-WF G1/4-AG 4 10.08.02.00167
STV-WF G1/4-AG 6 10.08.02.00169
STV-WF G1/4-AG 8 10.08.02.00171
STV-WF G1/4-AG 10 10.08.02.00258 Vacuum Suction Cups
STV-WF G3/8-AG 8 10.08.02.00234
STV-WF G3/8-AG 10 10.08.02.00259

Special
container
Design Data Plug-In Unions SVB-T Grippers
container
Vacuum Grip- ping Systems

Mounting Elements

Vacuum Generators

Plug-in connector SVB-T SVB-T
Valve Technology
container
Type Dimensions in mm
d D1 H H1 L
SVB-T 4 4 8.6 16.3 20.6 34.0
SVB-T 6 6 11.9 21.0 27.0 42.0 Switches and Monitoring
SVB-T 8 8 14.4 24.7 31.9 49.0
SVB-T 10 10 16.7 27.7 36.0 55.5
SVB-T 12 12 19.9 34.0 44.0 69.0
Filters and Connections
SVB-T 14 14 21.3 36.0 46.5 72.0

container
Ordering Data Plug-in unions SVB-T
container
Type Part Number
SVB-T 4 10.09.02.00020 Services
SVB-T 6 10.09.02.00021
SVB-T 8 10.09.02.00022
SVB-T 10 10.09.02.00025
SVB-T 12 10.09.02.00023
SVB-T 14 10.09.02.00046 Contact

Index of Products

container
container 725
www.schmalz.com/stv
