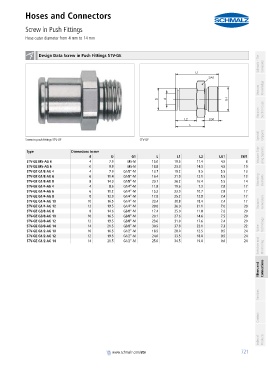

Hoses and Connectors
Screw in Push Fittings
PA01019111_inh_EN.pdf Hose outer diameter from 4 mm to 14 mm PA01019111_inh_EN.pdf

container

container Design Data Screw in Push Fittings STV-GE Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
Screw in push fittings STV-GE STV-GE

container
Type Dimensions in mm
d D G1 L L1 L2 LG1 SW1 Vacuum Grip- ping Systems
STV-GE M5-AG 4 4 7.9 M5-M 15.0 19.5 11.4 4.5 8
STV-GE M5-AG 6 6 9.9 M5-M 18.8 23.3 14.3 4.5 10
STV-GE G1/8-AG 4 4 7.9 G1/8"-M 13.7 19.2 9.5 5.5 13
STV-GE G1/8-AG 6 6 11.4 G1/8"-M 16.4 21.9 12.1 5.5 13
STV-GE G1/8-AG 8 8 14.0 G1/8"-M 20.7 26.2 16.4 5.5 14 Mounting Elements
STV-GE G1/4-AG 4 4 8.6 G1/4"-M 11.8 19.6 7.3 7.8 17
STV-GE G1/4-AG 6 6 11.2 G1/4"-M 15.2 23.0 10.7 7.8 17
STV-GE G1/4-AG 8 8 13.9 G1/4"-M 17.8 25.2 12.8 7.4 17
STV-GE G1/4-AG 10 10 16.5 G1/4"-M 23.4 30.8 18.4 7.4 17 Vacuum Generators
STV-GE G1/4-AG 12 12 19.5 G1/4"-M 29.0 36.0 21.1 7.0 20
STV-GE G3/8-AG 8 8 14.6 G3/8"-M 17.4 25.0 11.8 7.6 20
STV-GE G3/8-AG 10 10 16.5 G3/8"-M 20.1 27.6 14.6 7.5 20
STV-GE G3/8-AG 12 12 19.5 G3/8"-M 23.6 31.0 17.6 7.4 20
STV-GE G3/8-AG 14 14 21.5 G3/8"-M 30.5 37.8 22.1 7.3 22 Valve Technology
STV-GE G1/2-AG 10 10 16.5 G1/2"-M 18.5 28.0 12.5 9.5 24
STV-GE G1/2-AG 12 12 19.5 G1/2"-M 24.0 33.5 18.0 9.5 24
Switches and Monitoring
STV-GE G1/2-AG 14 14 21.5 G1/2"-M 25.0 34.5 19.0 9.6 24
