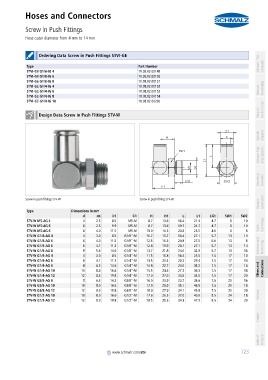

Hoses and Connectors
Screw in Push Fittings
PA01019111_inh_EN.pdf Hose outer diameter from 4 mm to 14 mm PA01019111_inh_EN.pdf

container

container Ordering Data Screw in Push Fittings STVI-GE Schmalz - The
Type Part Number Company
STVI-GE G1/8-IG 4 10.08.02.00149
STVI-GE G1/8-IG 6 10.08.02.00150
STVI-GE G1/8-IG 8 10.08.02.00151
STVI-GE G1/4-IG 4 10.08.02.00152 Knowledge
STVI-GE G1/4-IG 6 10.08.02.00153 Vacuum
STVI-GE G1/4-IG 8 10.08.02.00154
STVI-GE G1/4-IG 10 10.08.02.00260
Vacuum
container Suction Cups
Design Data Screw in Push Fittings STV-W

container
Special Grippers

Vacuum Grip- ping Systems

Mounting Elements

Screw in push fittings STV-W Screw in push fitting STV-W
Vacuum Generators
container
Type Dimensions in mm
d dn D1 G1 H H1 L L1 LG1 SW1 SW2
STV-W M5-AG 4 4 2.5 8.5 M5-M 8.7 13.6 16.4 21.4 4.7 8 10
STV-W M5-AG 6 6 2.5 9.9 M5-M 8.7 13.6 19.7 24.7 4.7 8 10 Valve Technology
STV-W M5-AG 6 6 4.0 11.5 M5-M 13.0 16.5 20.8 25.5 4.0 8 8
STV-W G1/8-AG 4 4 3.0 8.5 G1/8"-M 10.7 15.7 16.4 27.1 5.7 13 10
STV-W G1/8-AG 6 6 4.0 11.5 G1/8"-M 12.5 16.5 20.8 27.5 6.0 13 8
STV-W G1/8-AG 6 6 4.1 11.3 G1/8"-M 12.8 19.9 20.1 27.1 5.7 13 14 Switches and Monitoring
STV-W G1/8-AG 8 8 5.5 14.6 G1/8"-M 13.7 21.8 24.0 32.0 5.7 13 16
STV-W G1/4-AG 4 4 3.0 8.5 G1/4"-M 11.5 16.8 16.4 25.5 7.5 17 10
STV-W G1/4-AG 6 6 4.1 11.3 G1/4"-M 13.5 20.4 20.2 29.4 7.5 17 14
STV-W G1/4-AG 8 8 6.5 14.6 G1/4"-M 14.8 22.7 24.0 33.2 7.5 17 16
STV-W G1/4-AG 10 10 8.0 16.6 G1/4"-M 15.5 24.5 27.2 36.3 7.5 17 18 Filters and Connections
STV-W G1/4-AG 12 12 8.5 19.8 G1/4"-M 17.0 27.0 34.5 44.5 7.5 17 20
STV-W G3/8-AG 8 8 6.5 14.3 G3/8"-M 16.0 23.9 23.7 34.6 7.5 20 16
STV-W G3/8-AG 10 10 8.0 16.5 G3/8"-M 17.0 26.0 35.1 46.0 7.5 20 18
STV-W G3/8-AG 12 12 9.0 19.8 G3/8"-M 18.0 27.9 34.1 45.0 7.5 20 20
STV-W G1/2-AG 10 10 8.0 16.6 G1/2"-M 17.6 26.5 27.0 40.0 9.5 24 18 Services
STV-W G1/2-AG 12 12 9.0 19.8 G1/2"-M 18.5 28.5 34.3 47.3 9.5 24 20
