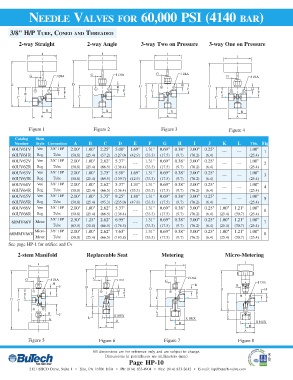

NEEDLE VALVES FOR 60,000 PSI (4140 BAR)

3/8" H/P TUBE, CONED AND THREADED
2-way Straight 2-way Angle 3-way Two on Pressure 3-way One on Pressure

I I I
I

G J DIA G J DIA
G J DIA G J DIA
D D H
H D D
H F E F H
F E F
E
C C C C
B B B B
A A A A

Figure 1 Figure 2 Figure 3 Figure 4
Catalog Stem
Number Style Connection A B C D E F G H I J K L Thk. Fig
60UV61V Vee 3/8" H/P 2.00" 1.00" 2.25" 5.00" 1.69" 1.31" 0.69" 0.38" 3.00" 0.25" 1.00"
--- --- 1
60UV61R Reg Tube (50.8) (25.4) (57.2) (127.0) (42.9) (33.3) (17.5) (9.7) (76.2) (6.4) (25.4)
60UV62V Vee 3/8" H/P 2.00" 1.00" 2.62" 5.37" 1.31" 0.69" 0.38" 3.00" 0.25" 1.00"
--- --- --- 2
60UV62R Reg Tube (50.8) (25.4) (66.5) (136.4) (33.3) (17.5) (9.7) (76.2) (6.4) (25.4)
60UV63V Vee 3/8" H/P 2.00" 1.00" 2.75" 5.50" 1.69" 1.31" 0.69" 0.38" 3.00" 0.25" 1.00"
--- --- 3
60UV63R Reg Tube (50.8) (25.4) (69.9) (139.7) (42.9) (33.3) (17.5) (9.7) (76.2) (6.4) (25.4)
60UV64V Vee 3/8" H/P 2.00" 1.00" 2.62" 5.37" 1.31" 1.31" 0.69" 0.38" 3.00" 0.25" 1.00"
--- --- 4
60UV64R Reg Tube (50.8) (25.4) (66.5) (136.4) (33.3) (33.3) (17.5) (9.7) (76.2) (6.4) (25.4)
60UV65V Vee 3/8" H/P 2.00" 1.00" 3.75" 9.25" 1.88" 1.31" 0.69" 0.38" 3.00" 0.25" 1.00"
--- --- 5
60UV65R Reg Tube (50.8) (25.4) (95.3) (235.0) (47.8) (33.3) (17.5) (9.7) (76.2) (6.4) (25.4)
60UV66V Vee 3/8" H/P 2.00" 1.00" 2.62" 5.37" 1.31" 0.69" 0.38" 3.00" 0.25" 1.00" 1.21" 1.00"
--- 6
60UV66R Reg Tube (50.8) (25.4) (66.5) (136.4) (33.3) (17.5) (9.7) (76.2) (6.4) (25.4) (30.7) (25.4)
3/8" H/P 2.50" 1.25" 2.62" 6.95" 1.31" 0.69" 0.38" 3.00" 0.25" 1.00" 1.21" 1.00"
60MV66V Meter --- 7
Tube (63.5) (31.8) (66.5) (176.5) (33.3) (17.5) (9.7) (76.2) (6.4) (25.4) (30.7) (25.4)
Micro- 3/8" H/P 2.00" 1.00" 2.62" 7.63" 1.31" 0.69" 0.38" 3.00" 0.25" 1.00" 1.21" 1.00"
60MMV66V --- 8
Meter Tube (50.8) (25.4) (66.5) (193.8) (33.3) (17.5) (9.7) (76.2) (6.4) (25.4) (30.7) (25.4)
See page HP-1 for orifice and Cv
2-stem Manifold Replaceable Seat Metering Micro-Metering

I I I I

G J DIA G J DIA J DIA
G
H H J DIA
F D G
H D D H
E F F
C C F
D C
C
L
B F L
L K HEX K HEX
A
B K HEX
B
A B
A
A
Figure 5 Figure 6 Figure 7 Figure 8
All dimensions are for reference only and are subject to change.
Dimensions in parentheses are millimeters (mm) HP-09
