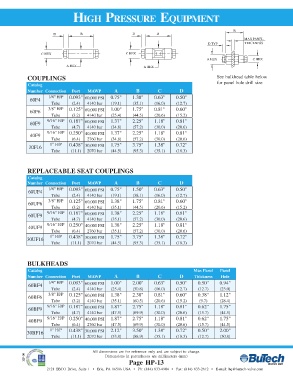

HIGH PRESSURE EQUIPMENT
B
D B D B
MAX PANEL
D TYP THICKNESS
C HEX C HEX
A HEX C HEX
A HEX A HEX

COUPLINGS See bulkhead table below
for panel hole drill size
Catalog
Number Connection Port MAWP A B C D
1/4" H/P 0.093" 60,000 PSI 0.75" 1.38" 0.63" 0.50"
60F4
Tube (2.4) 4140 bar (19.1) (35.1) (16.0) (12.7)
3/8" H/P 0.125" 60,000 PSI 1.00" 1.75" 0.81" 0.60"
60F6
Tube (3.2) 4140 bar (25.4) (44.5) (20.6) (15.2)
9/16" H/P 0.187" 60,000 PSI 1.37" 2.25" 1.18" 0.81"
60F9
Tube (4.7) 4140 bar (34.8) (57.2) (30.0) (20.6)
9/16" H/P 0.250" 40,000 PSI 1.37" 2.25" 1.18" 0.81"
40F9
Tube (6.4) 2760 bar (34.8) (57.2) (30.0) (20.6)
1" H/P 0.438" 30,000 PSI 1.75" 3.75" 1.38" 0.72"
30F16
Tube (11.1) 2070 bar (44.5) (95.3) (35.1) (18.3)

REPLACEABLE SEAT COUPLINGS
Catalog
Number Connection Port MAWP A B C D
1/4" H/P 0.093" 60,000 PSI 0.75" 1.50" 0.63" 0.50"
60UF4
Tube (2.4) 4140 bar (19.1) (38.1) (16.0) (12.7)
3/8" H/P 0.125" 60,000 PSI 1.38" 1.75" 0.81" 0.60"
60UF6
Tube (3.2) 4140 bar (35.1) (44.5) (20.6) (15.2)
9/16" H/P 0.187" 60,000 PSI 1.38" 2.25" 1.18" 0.81"
60UF9
Tube (4.7) 4140 bar (35.1) (57.2) (30.0) (20.6)
9/16" H/P 0.250" 40,000 PSI 1.38" 2.25" 1.18" 0.81"
40UF9
Tube (6.4) 2760 bar (35.1) (57.2) (30.0) (20.6)
1" H/P 0.438" 30,000 PSI 1.75" 3.75" 1.38" 0.72"
30UF16
Tube (11.1) 2070 bar (44.5) (95.3) (35.1) (18.3)

BULKHEADS
Catalog Max Panel Panel
Number Connection Port MAWP A B C D Thickness Hole
1/4" H/P 0.093" 60,000 PSI 1.00" 2.00" 0.63" 0.50" 0.50" 0.94"
60BF4
Tube (2.4) 4140 bar (25.4) (50.8) (16.0) (12.7) (12.7) (23.0)
3/8" H/P 0.125" 60,000 PSI 1.38" 2.38" 0.81" 0.60" 0.38" 1.12"
60BF6
Tube (3.2) 4140 bar (35.1) (60.5) (20.6) (15.2) (9.7) (28.4)
9/16" H/P 0.187" 60,000 PSI 1.87" 2.75" 1.18" 0.81" 0.62" 1.75"
60BF9
Tube (4.7) 4140 bar (47.5) (69.9) (30.0) (20.6) (15.7) (44.5)
9/16" H/P 0.250" 40,000 PSI 1.87" 2.75" 1.18" 0.81" 0.62" 1.75"
40BF9
Tube (6.4) 2760 bar (47.5) (69.9) (30.0) (20.6) (15.7) (44.5)
1" H/P 0.438" 30,000 PSI 2.12" 3.50" 1.38" 0.72" 0.50" 2.00"
30BF16
Tube (11.1) 2070 bar (53.8) (88.9) (35.1) (18.3) (12.7) (50.8)

All dimensions are for reference only and are subject to change.
HP-09 Dimensions in parentheses are millimeters (mm)
