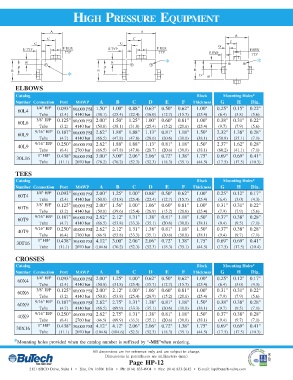

Page 12 - BuTech - High Pressure Valves and Fittings

HIGH PRESSURE EQUIPMENT
A A
A
C C
C
G G
G
E TYP F HEX E TYP F HEX F HEX
TYP TYP E TYP TYP
H H * *
D D
B B B
* D H

ELBOWS
Catalog Block Mounting Holes*
Number Connection Port MAWP A B C D E F Thickness G H Dia.
1/4" H/P 0.093" 60,000 PSI 1.50" 1.00" 0.88" 0.63" 0.50" 0.62" 1.00" 0.25" 0.15" 0.22"
60L4
Tube (2.4) 4140 bar (38.1) (25.4) (22.4) (16.0) (12.7) (15.7) (25.4) (6.4) (3.8) (5.6)
3/8" H/P 0.125" 60,000 PSI 2.00" 1.50" 1.25" 1.00" 0.60" 0.81" 1.00" 0.38" 0.31" 0.22"
60L6
Tube (3.2) 4140 bar (50.8) (38.1) (31.8) (25.4) (15.2) (20.6) (25.4) (9.7) (7.9) (5.6)
9/16" H/P 0.187" 60,000 PSI 2.62" 1.88" 1.88" 1.13" 0.81" 1.18" 1.50" 2.32" 1.38" 0.28"
60L9
Tube (4.7) 4140 bar (66.5) (47.8) (47.8) (28.6) (20.6) (30.0) (38.1) (58.9) (35.1) (7.1)
9/16" H/P 0.250" 40,000 PSI 2.62" 1.88" 1.88" 1.13" 0.81" 1.18" 1.50" 2.37" 1.62" 0.28"
40L9
Tube (6.4) 2760 bar (66.5) (47.8) (47.8) (28.7) (20.6) (30.0) (38.1) (60.2) (41.1) (7.1)
1" H/P 0.438" 30,000 PSI 3.00" 3.00" 2.06" 2.06" 0.72" 1.38" 1.75" 0.69" 0.69" 0.41"
30L16
Tube (11.1) 2070 bar (76.2) (76.2) (52.3) (52.3) (18.3) (35.1) (44.5) (17.5) (17.5) (10.3)
TEES
Catalog Block Mounting Holes*
Number Connection Port MAWP A B C D E F Thickness G H Dia.
1/4" H/P 0.093" 60,000 PSI 2.00" 1.25" 1.00" 0.88" 0.50" 0.62" 1.00" 0.25" 0.12" 0.17"
60T4
Tube (2.4) 4140 bar (50.8) (31.8) (25.4) (22.4) (12.7) (15.7) (25.4) (6.4) (3.0) (4.3)
3/8" H/P 0.125" 60,000 PSI 2.00" 1.56" 1.00" 1.06" 0.60" 0.81" 1.00" 0.31" 0.31" 0.22"
60T6
Tube (3.2) 4140 bar (50.8) (39.6) (25.4) (26.9) (15.2) (20.6) (25.4) (7.9) (7.9) (5.6)
9/16" H/P 0.187" 60,000 PSI 2.62" 2.12" 1.31" 1.38" 0.81" 1.18" 1.50" 0.37" 0.38" 0.28"
60T9
Tube (4.7) 4140 bar (66.5) (53.8) (33.3) (35.1) (20.6) (30.0) (38.1) (9.4) (9.5) (7.1)
9/16" H/P 0.250" 40,000 PSI 2.62" 2.12" 1.31" 1.38" 0.81" 1.18" 1.50" 0.37" 0.38" 0.28"
40T9
Tube (6.4) 2760 bar (66.5) (53.8) (33.3) (35.1) (20.6) (30.0) (38.1) (9.4) (9.7) (7.1)
1" H/P 0.438" 30,000 PSI 4.12" 3.00" 2.06" 2.06" 0.72" 1.38" 1.75" 0.69" 0.69" 0.41"
30T16
Tube (11.1) 2070 bar (104.6) (76.2) (52.3) (52.3) (18.3) (35.1) (44.5) (17.5) (17.5) (10.4)
CROSSES
Catalog Block Mounting Holes*
Number Connection Port MAWP A B C D E F Thickness G H Dia.
1/4" H/P 0.093" 60,000 PSI 2.00" 1.25" 1.00" 0.62" 0.50" 0.62" 1.00" 0.25" 0.12" 0.17"
60X4
Tube (2.4) 4140 bar (50.8) (31.8) (25.4) (15.7) (12.7) (15.7) (25.4) (6.4) (3.0) (4.3)
3/8" H/P 0.125" 60,000 PSI 2.00" 2.12" 1.00" 1.06" 0.60" 0.81" 1.00" 0.31" 0.31" 0.22"
60X6
Tube (3.2) 4140 bar (50.8) (53.8) (25.4) (26.9) (15.2) (20.6) (25.4) (7.9) (7.9) (5.6)
9/16" H/P 0.187" 60,000 PSI 2.62" 2.75" 1.31" 1.38" 0.81" 1.18" 1.50" 0.38" 0.38" 0.28"
60X9
Tube (4.7) 4140 bar (66.5) (69.9) (33.3) (35.1) (20.6) (30.0) (38.1) (9.7) (9.5) (7.1)
9/16" H/P 0.250" 40,000 PSI 2.62" 2.75" 1.31" 1.38" 0.81" 1.18" 1.50" 0.37" 0.38" 0.28"
40X9
Tube (6.4) 2760 bar (66.5) (69.9) (33.3) (35.1) (20.6) (30.0) (38.1) (9.4) (9.7) (7.1)
1" H/P 0.438" 30,000 PSI 4.12" 4.12" 2.06" 2.06" 0.72" 1.38" 1.75" 0.69" 0.69" 0.41"
30X16
Tube (11.1) 2070 bar (104.6) (104.6) (52.3) (52.3) (18.3) (35.1) (44.5) (17.5) (17.5) (10.3)
*Mounting holes provided when the catalog number is suffixed by “-MH”when ordering.

All dimensions are for reference only and are subject to change.
Dimensions in parentheses are millimeters (mm) HP-09
