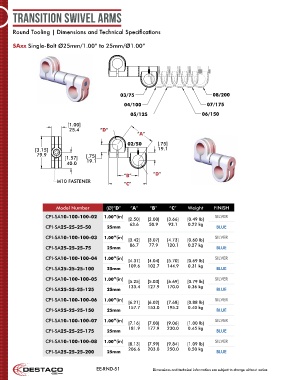

Page 51 - Destaco - Round Tooling Systems

[.60]
[.60]
[1.00]
15.2
15.2
25.4
[.75]
19.1
[.75]
[.75]
[1.00]
[1.00]
25.4
“D”
“D”
25.4
[2.86]
72.7
72.7
[1.29]
32.7
32.7 02/50 03/75 “A” Ø19.1 [2.86] [1.29] 02/50 03/75 “A” Ø19.1
“B” “B”
Transition Swivel Arms M10 FASTENER “C”
M10 FASTENER
“C”
Round Tooling | Dimensions and Technical Specifications
SAxx Single-Bolt Ø25mm/1.00” to 25mm/Ø1.00”
03/75 08/200
04/100 07/175
05/125 06/150
[1.00]
25.4 “D”
“A”

02/50 [.75]
[3.15] 19.1
79.9 [.75]
[1.57]
40.0 19.1

“B” “D”
M10 FASTENER
“C”

Model Number (Ø)“D” “A” “B” “C” Weight FINISH

CPI-SA10-100-100-02 1.00”(in) SILVER
[2.50] [2.00] [3.66] [0.49 lb]
63.6 50.9 93.1 0.22 kg
CPI-SA25-25-25-50 25mm BLUE
CPI-SA10-100-100-03 1.00”(in) SILVER
[3.42] [3.07] [4.73] [0.60 lb]
86.7 77.9 120.1 0.27 kg
CPI-SA25-25-25-75 25mm BLUE
CPI-SA10-100-100-04 1.00”(in) SILVER
[4.31] [4.04] [5.70] [0.69 lb]
109.6 102.7 144.9 0.31 kg
CPI-SA25-25-25-100 25mm BLUE
CPI-SA10-100-100-05 1.00”(in) SILVER
[5.25] [5.03] [6.69] [0.79 lb]
133.4 127.9 170.0 0.36 kg
CPI-SA25-25-25-125 25mm BLUE
CPI-SA10-100-100-06 1.00”(in) SILVER
[6.21] [6.02] [7.68] [0.88 lb]
157.7 153.0 195.2 0.40 kg
CPI-SA25-25-25-150 25mm BLUE

CPI-SA10-100-100-07 1.00”(in) SILVER
[7.16] [7.00] [9.06] [1.00 lb]
181.9 177.9 230.0 0.45 kg
CPI-SA25-25-25-175 25mm BLUE
CPI-SA10-100-100-08 1.00”(in) SILVER
[8.13] [7.99] [9.84] [1.09 lb]
206.6 203.0 250.0 0.50 kg
CPI-SA25-25-25-200 25mm BLUE

EE-RND-51 Dimensions and technical information are subject to change without notice
