Page 65 - Destaco - Round Tooling Systems
P. 65

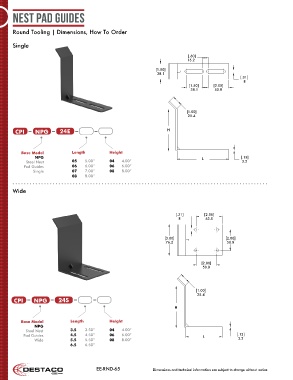

Nest Pad Guides
Round Tooling | Dimensions, How To Order
[.31] [2.50]
8 63.5
Single
[.60]
[3.00] [2.00] 15.2
76.2 50.8
[1.50]
38.1
[.31]
8
[2.00] [1.50] [2.00]
50.8 38.1 50.8
[1.00]
[1.00] 25.4
25.4
CPI NPG H 24E H
Base Model Length Height
NPG [.13] L [.13]
3.2
Steel Nest 05 L 5.00” 04 4.00” 3.2
Pad Guides 06 6.00” 06 6.00”
Single 07 7.00” 08 8.00”
08 8.00”
Wide
[.31] [2.50]
8 63.5
[.60]
[3.00] [2.00] 15.2
76.2 50.8
[1.50]
38.1
[.31]
8
[2.00] [1.50] [2.00]
50.8 38.1 50.8
[1.00]
[1.00] 25.4
25.4
CPI NPG 24S
H H
Base Model Length Height
NPG
Steel Nest 3.5 3.50” 04 4.00”
Pad Guides 4.5 4.50” 06 6.00” L [.13] L [.13]
3.2
Wide 5.5 5.50” 08 8.00” 3.2
6.5 6.50”
EE-RND-65 Dimensions and technical information are subject to change without notice
