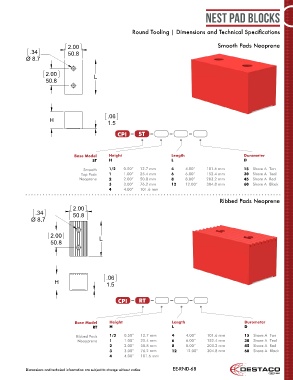

Page 68 - Destaco - Round Tooling Systems

Nest Pad Blocks

Round Tooling | Dimensions and Technical Specifications

2.00 2.00 2.00 Smooth Pads Neoprene
.34 50.8 50.8 .34 50.8
Ø 8.7 .34 Ø 8.7
Ø 8.6

2.00 L 2.00 2.00
50.8 50.8 L 50.8 L

.06 .06
.12
H 1.5 H 3 H 1.5

CPI ST

Base Model Height Length Durometer
ST H L D

Smooth 1/2 0.50” 12.7 mm 4 4.00” 101.6 mm 15 Shore A Tan
Top Pads 1 1.00” 25.4 mm 6 6.00” 152.4 mm 30 Shore A Teal
Neoprene 2 2.00” 50.8 mm 8 8.00” 203.2 mm 45 Shore A Red
3 3.00” 76.2 mm 12 12.00” 304.8 mm 60 Shore A Black
4 4.00” 101.6 mm

Ribbed Pads Neoprene
2.00 2.00 2.00
.34 50.8 50.8 .34 50.8
Ø 8.7 .34 Ø 8.7
Ø 8.6

2.00 L 2.00 2.00
50.8 50.8 L 50.8 L

.06 .06
.12
H 1.5 H 3 H 1.5

CPI RT

Base Model Height Length Durometer
RT H L D

Ribbed Pads 1/2 0.50” 12.7 mm 4 4.00” 101.6 mm 15 Shore A Tan
Neopprene 1 1.00” 25.4 mm 6 6.00” 152.4 mm 30 Shore A Teal
2 2.00” 50.8 mm 8 8.00” 203.2 mm 45 Shore A Red
3 3.00” 76.2 mm 12 12.00” 304.8 mm 60 Shore A Black
4 4.00” 101.6 mm

Dimensions and technical information are subject to change without notice EE-RND-68
