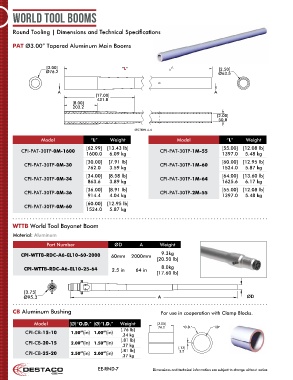

Page 7 - Destaco - Round Tooling Systems

World Tool Booms

Round Tooling | Dimensions and Technical Specifications

PAT Ø3.00” Tapered Aluminum Main Booms

[3.00] “L” [2.50]
Ø76.2 Ø63.5

A A
[17.00]
431.8
[8.00]
203.2
[2.00]
50.8

SECTION A-A

Model “L” Weight Model “L” Weight
[62.99] [13.43 lb] [55.00] [12.08 lb]
CPI-PAT-30TP-0M-1600 CPI-PAT-30TP-1M-55
1600.0 6.09 kg 1397.0 5.48 kg
[30.00] [7.91 lb] [60.00] [12.95 lb]
CPI-PAT-30TP-0M-30 CPI-PAT-30TP-1M-60
762.0 3.59 kg 1524.0 5.87 kg
[34.00] [8.58 lb] [64.00] [13.60 lb]
CPI-PAT-30TP-0M-34 CPI-PAT-30TP-1M-64
863.6 3.89 kg 1625.6 6.17 kg
[36.00] [8.91 lb] [55.00] [12.08 lb]
CPI-PAT-30TP-0M-36 CPI-PAT-30TP-2M-55
914.4 4.04 kg 1397.0 5.48 kg
[60.00] [12.95 lb]
CPI-PAT-30TP-0M-60
1524.0 5.87 kg

WTTB World Tool Bayonet Boom
Material: Aluminum

Part Number ØD A Weight

CPI-WTTB-RDC-A6-EL10-60-2000 60mm 2000mm 9.3kg
[20.50 lb]
[1.00] [1.75] 8.0kg [4.00] [1.00]
CPI-WTTB-RDC-A6-EL10-25-64 R 25.4 2.5 in 64 in 101.6 25.4
44.5
[17.60 lb]
[.16]
4.0
[3.75]
Ø95.3 A ØD
[6.00] [1.51] [2.50]
152.4 Ø38.4 Ø63.5
CB Aluminum Bushing For use in cooperation with Clamp Blocks.

Model (Ø)“O.D.” (Ø)“I.D.” Weight [3.00]
[.76 lb] 76.2 "O.D." "I.D"
CPI-CB-15-10 1.50”(in) 1.00”(in)
.34 kg
[.81 lb]
CPI-CB-20-15 2.00”(in) 1.50”(in)
.37 kg
[.81 lb] [.13]
3.2
CPI-CB-25-20 2.50”(in) 2.00”(in)
.37 kg
EE-RND-7 Dimensions and technical information are subject to change without notice
