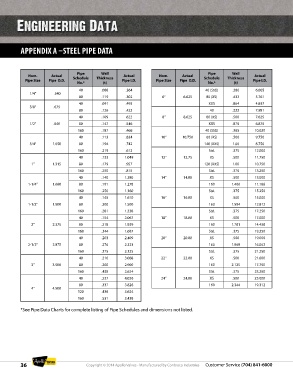

APPENDIX A –STEEL PIPE DATA APPENDIX B – DIMENSIONS OF FLANGED & BUTTWELD VALVES

Pipe Wall Pipe Wall
Nom. Actual Schedule Thickness Actual Nom. Actual Schedule Thickness Actual
Pipe Size Pipe O.D. Pipe I.D. Pipe Size Pipe O.D. Pipe I.D.
No.* (t) No.* (t)
40 .088 .364 40 (Std.) .280 6.065
1/4” .540
80 .119 .302 6” 6.625 80 (XS) .432 5.761
40 .091 .493 XXS .864 4.897
3/8” .675
80 .126 .423 40 .322 7.981
40 .109 .622 8” 8.625 80 (XS) .500 7.625
1/2” .840 80 .147 .546 XXS .875 6.875
160 .187 .466 40 (Std.) .365 10.020
40 .113 .824 10” 10.750 60 (XS) .500 9.750
3/4” 1.050 80 .194 .742 140 (XXS) 1.00 8.750
160 .219 .612 Std. .375 12.000
40 .133 1.049 12” 12.75 XS .500 11.750
1” 1.315 80 .179 .957 120 (XXS) 1.00 10.750
160 .250 .815 Std. .375 13.250
40 .140 1.380 14” 14.00 XS .500 13.000
1-1/4” 1.660 80 .191 1.278 160 1.406 11.188
160 .250 1.160 Std. .375 15.250
40 .145 1.610 16” 16.00 XS .500 15.000
1-1/2” 1.900 80 .200 1.500 160 1.594 12.812
160 .281 1.338 Std. .375 17.250
40 .154 2.067 18” 18.00 XS .500 17.000
2” 2.375 80 .218 1.939 160 1.781 14.438
160 .344 1.687 Std. .375 19.250
40 .203 2.409 20” 20.00 XS .500 19.000
2-1/2” 2.875 80 .276 2.323 160 1.969 16.062
160 .375 2.125 Std. .375 21.250
40 .216 3.068 22” 22.00 XS .500 21.000
3” 3.500 80 .300 2.900 160 2.125 17.750
160 .438 2.624 Std. .375 23.250
40 .237 4.026 24” 24.00 XS .500 23.000
80 .337 3.826 160 2.344 19.312
4” 4.500
120 .438 3.624
160 .531 3.438

*See Pipe Data Charts for complete listing of Pipe Schedules and dimensions not listed.
