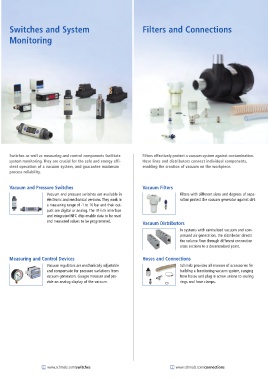

Page 7 - Schmalz - Vacuum Components Product Overview

Achtung! Hier 1-2mm
beschneiden
Altarfalz

Switches and System Filters and Connections

Monitoring

Switches as well as measuring and control components facilitate Filters effectively protect a vacuum system against contamination.
system monitoring. They are crucial for the safe and energy effi- Hose lines and distributors connect individual components,
cient operation of a vacuum system, and guarantee maximum enabling the creation of vacuum on the workpiece.
process reliability.

Vacuum and Pressure Switches Vacuum Filters
Vacuum and pressure switches are available in Filters with different sizes and degrees of sepa-
electronic and mechanical versions. They work in ration protect the vacuum generator against dirt.
a measuring range of -1 to 10 bar and their out-
puts are digital or analog. The IO-link interface
and integrated NFC chip enable data to be read
and measured values to be programmed. Vacuum Distributors
In systems with centralized vacuum and com-
pressed air generation, the distributor directs
the volume flow through different connection
cross sections to a decentralized point.

Measuring and Control Devices Hoses and Connections
Vacuum regulators are mechanically adjustable Schmalz provides all manner of accessories for
and compensate for pressure variations from building a functioning vacuum system, ranging
vacuum generators. Gauges measure and pro- from hoses and plug in screw unions to sealing
vide an analog display of the vacuum. rings and hose clamps.

www.schmalz.com/switches www.schmalz.com/connections
