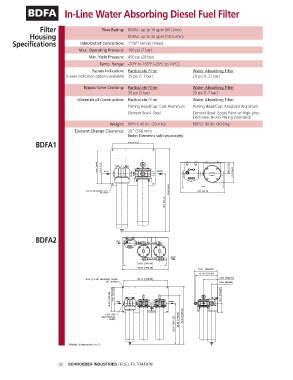

Page 32 - Schroeder - Fuel Filtration

BDFA In-Line Water Absorbing Diesel Fuel Filter

Filter Flow Rating: BDFA1: up to 16 gpm (60 L/min)
Housing BDFA2: up to 32 gpm (120 L/min)
Specifications Inlet/Outlet Connection: 1" NPT female thread
Max. Operating Pressure: 100 psi (7 bar)
Min. Yield Pressure: 450 psi (28 bar)
Temp. Range: -20°F to 165°F (-29°C to 74°C)
Bypass Indication: Particulate Filter Water Absorbing Filter
(Lower indication options available) 25 psi (1.7 bar) 20 psi (1.37 bar)

Bypass Valve Cracking: Particulate Filter Water Absorbing Filter
30 psi (2 bar) 25 psi (1.7 bar)
Materials of Construction: Particulate Filter Water Absorbing Filter
Porting Head/Cap: Cast Aluminum Porting Head/Cap: Anodized Aluminum
Element Bowl: Steel Element Bowl: Epoxy Paint w/ High-phos
Electroless Nickel Plating (Standard)
Weight: BDFA1: 45 lbs. (20.4 kg) BDFA2: 90 lbs. (40.8 kg)
Element Change Clearance: 20” (508 mm)
Note: Elements sold separately
BDFA1

BDFA2

Metric di men sions in ( ).

32 SCHROEDER INDUSTRIES | FUEL FILTRATION
