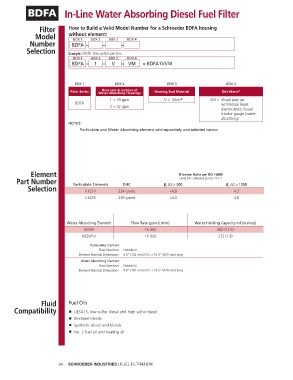

BDFA In-Line Water Absorbing Diesel Fuel Filter

Filter How to Build a Valid Model Number for a Schroeder BDFA housing
Model without element: BOX 3 BOX 4
BOX 2
BOX 1
Number BDFA – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4
BDFA – 1 – V – VM = BDFA1VVM

BOX 1 BOX 2 BOX 3 BOX 4
Flow rate & number of
Filter Series Water Absorbing Housings Housing Seal Material Dirt Alarm ®
1 = 16 gpm V = Viton ® VM = Visual pop-up
BDFA w/ Manual Reset
2 = 32 gpm
(particulate); Visual
tricolor gauge (water
absorbing)
NOTES:
Particulate and Water Absorbing element sold separately and selected below

Element Filtration Ratio per ISO 16889
Using APC calibrated per ISO 11171
Part Number Particulate Elements DHC β (c) ≥ 200 β (c) ≥ 1000
Selection KKZ1V 224 grams x <4.0 x 4.2

KKZ3V 230 grams <4.0 4.8

Water Absorbing Element Flow Rate gpm (L/min) Water Holding Capacity ml (ounces)
KKWV 16 (60) 400 (13.5)
KKZW5V 16 (60) 232 (7.8)
Particulate Element
Flow Direction: Outside In
Element Nominal Dimensions: 4.0" (102 mm) O.D. x 18.5" (470 mm) long
Water Absorbing Element
Flow Direction: Outside In
Element Nominal Dimensions: 4.0” (102 mm) O.D. x 18.5” (470 mm) long

Fluid Fuel Oils
Compatibility ■ ULSD15, low sulfur diesel and high sulfur diesel
■ Biodiesel blends
■ Synthetic diesel and blends
■ No. 2 fuel oil and heating oil
