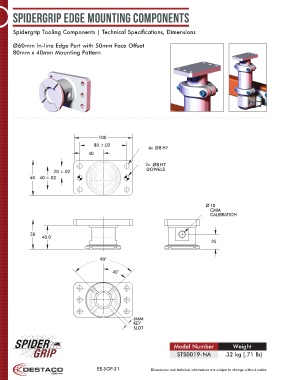

SpiderGrip Edge Mounting Components
Spidergrip Tooling Components | Technical Specifications, Dimensions
Ø60mm In-line Edge Part with 50mm Face Offset
80mm x 40mm Mounting Pattern
100
80 ±.02
4x Ø8 H7
40
2x Ø8 H7
DOWELS
20 ±.02
60 40 ±.02
Ø10
CMM
CALIBRATION
50
40.0
25
90°
45°
6MM
KEY
SLOT
Model Number Weight
STS0019-NA .32 kg [.71 lb]
EE-SGP-31 Dimensions and technical information are subject to change without notice
