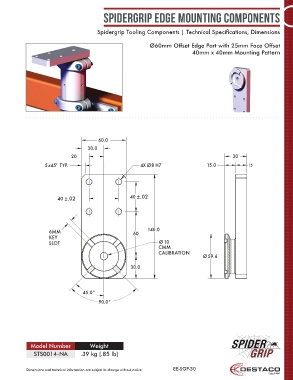

SpiderGrip Edge Mounting Components
Ø60mm Offset Edge Part with 25mm Face Offset
40mm x 40mm Mounting Pattern
SpiderGrip Edge Mounting Components
Spidergrip Tooling Components | Technical Specifications, Dimensions
Ø60mm Offset Edge Part with 25mm Face Offset
40mm x 40mm Mounting Pattern
60.0
30.0
20 30
5x45 ° TYP. 4X Ø8 H7 15.0 15
40 ±.02 40 ±.02
6MM 60 140.0
KEY
SLOT Ø10
CMM
CALIBRATION
Ø 59.6
30.0
45.0°
90.0°
Model Number Weight
STS0014-NA .39 kg [.85 lb]
Dimensions and technical information are subject to change without notice EE-SGP-30
