SpiderGrip Junction Components
Spidergrip Tooling Components | Technical Specifications, Dimensions

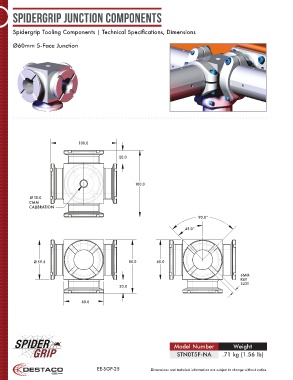

Ø60mm 5-Face Junction
100.0
20.0
100.0
Ø10.0
CMM
CALIBRATION
90.0°
45.0°
Ø59.6 80.0 60.0
6MM
KEY
SLOT
20.0
60.0
Model Number Weight
STN0T5F-NA .71 kg [1.56 lb]
EE-SGP-25 Dimensions and technical information are subject to change without notice
