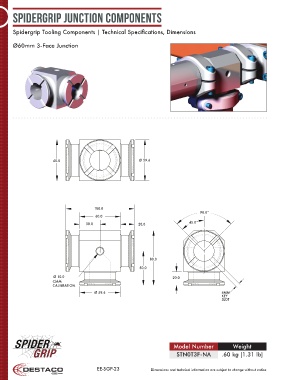

SpiderGrip Junction Components
Spidergrip Tooling Components | Technical Specifications, Dimensions
Ø60mm 3-Face Junction
60.0 Ø 59.6
100.0
90.0°
60.0
30.0 20.0 45.0°
80.0
50.0
Ø10.0 20.0
CMM
CALIBRATION
Ø 59.6 6MM
KEY
SLOT
Model Number Weight
STN0T3F-NA .60 kg [1.31 lb]
