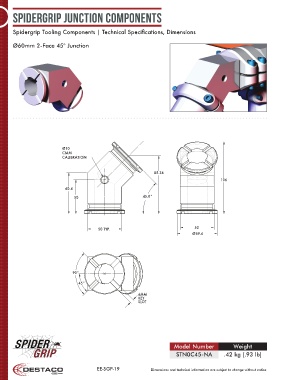

Page 19 - Destaco - SpiderGrip Geometric End Effector System
P. 19
SpiderGrip Junction Components
Spidergrip Tooling Components | Technical Specifications, Dimensions
Ø60mm 2-Face 45° Junction
Ø10
CMM
CALIBRATION
85.36
106
60.4
50 45.0°
50 TYP. 50
Ø59.6
90°
45°
6MM
KEY
SLOT
Model Number Weight
STN0C45-NA .42 kg [.93 lb]
EE-SGP-19 Dimensions and technical information are subject to change without notice
