P. 20

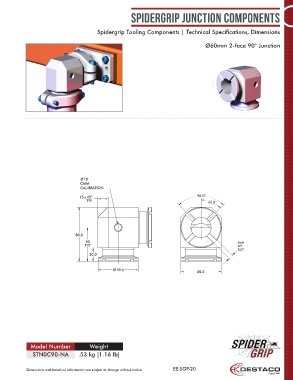

SpiderGrip Junction Components
Spidergrip Tooling Components | Technical Specifications, Dimensions
Ø60mm 2-face 90° Junction
Ø10
CMM
CALIBRATION
15 x 45° 90.0°
TYP. 45.0°
80.0
50 6MM
TYP. KEY
SLOT
20.0
Ø 59.6 60.0
Model Number Weight
STN0C90-NA .53 kg [1.16 lb]
Dimensions and technical information are subject to change without notice EE-SGP-20
