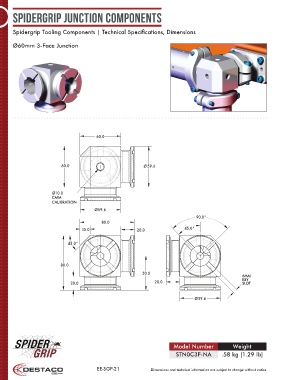

SpiderGrip Junction Components
Spidergrip Tooling Components | Technical Specifications, Dimensions
Ø60mm 3-Face Junction
60.0
60.0 Ø59.6
Ø10.0
CMM
CALIBRATION
Ø59.6
90.0°
80.0
15.0 20.0 45.0°
45.0°
80.0
50.0
6MM
SLOT
20.0 20.0 KEY
Ø59.6
Model Number Weight
STN0C3F-NA .58 kg [1.29 lb]
EE-SGP-21 Dimensions and technical information are subject to change without notice
