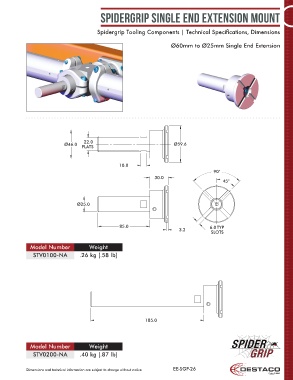

SpiderGrip Single End Extension Mount
Ø60mm to Ø25mm Single End Extension
SpiderGrip Single End Extension Mount
Spidergrip Tooling Components | Technical Specifications, Dimensions
Ø60mm to Ø25mm Single End Extension
22.0
Ø46.0 Ø59.6
FLATS
22.0
Ø46.0 Ø59.6
FLATS
10.0
90°
30.0 10.0
45°
90°
30.0
45°
Ø25.0
Ø25.0
85.0 6.0 TYP
3.2
SLOTS
85.0 6.0 TYP
3.2 SLOTS
Model Number Weight
STV0100-NA .26 kg [.58 lb]
185.0
185.0
Model Number Weight
STV0200-NA .40 kg [.87 lb]
