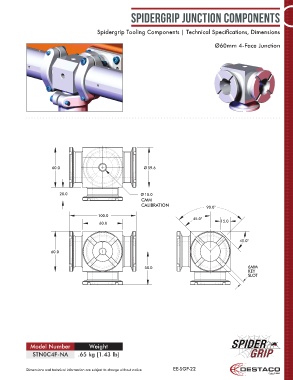

SpiderGrip Junction Components
Spidergrip Tooling Components | Technical Specifications, Dimensions
Ø60mm 4-Face Junction
60.0 Ø 59.6
20.0 Ø10.0
CMM
CALIBRATION 90.0°
100.0
45.0°
60.0 15.0
45.0°
60.0
50.0 6MM
KEY
SLOT
Ø59.6
80.0
Ø 59.6
Model Number Weight
STN0C4F-NA .65 kg [1.43 lb]
Dimensions and technical information are subject to change without notice EE-SGP-22
