SpiderGrip Junction Components

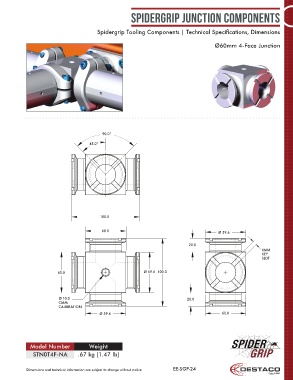

Spidergrip Tooling Components | Technical Specifications, Dimensions
Ø60mm 4-Face Junction
90.0°
45.0°
100.0
60.0 Ø 59.6
20.0
6MM
KEY
SLOT
60.0 Ø 59.6 100.0
Ø10.0 20.0
CMM
CALIBRATION
Ø 59.6 60.0
Model Number Weight
STN0T4F-NA .67 kg [1.47 lb]
